6955-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

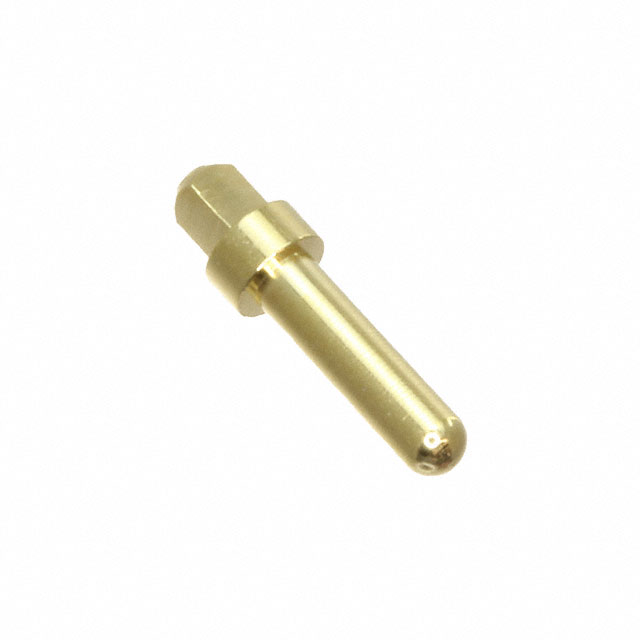

PRESS-FIT PCB PIN
| Part | Termination | Mounting Hole Diameter | Mounting Hole Diameter | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Flange | Length - Above Flange | Length - Overall [x] | Length - Overall [x] | Terminal Type | Contact Material | Contact Finish | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Press-Fit | 2.31 mm | 0.091 in | Non-Insulated | 0.125 in | 3.18 mm | 0.3 in | 7.62 mm | 11.68 mm | 0.46 in | PC Pin | Brass Alloy | Gold | Through Hole | 0.25 Ám | 10 Áin | 2.03 mm | 0.08 in | 2.54 mm | 0.1 " | Single End |
