Q5-3X-1 1/2 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 1.575" X 82' BLACK

Part	Shelf Life	Length	Length	Recovered Wall Thickness	Recovered Wall Thickness	Color	Features	Inner Diameter - Supplied	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio	Type	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Length [x]	Length [x]	Length

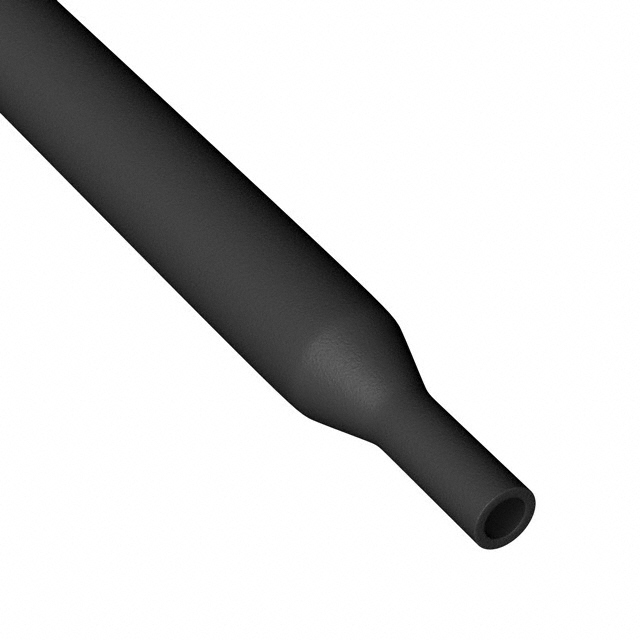

Qualtek Q5-3X-1 1/2-01-SS25M	60 Months	82 ft	25 m	2.4 mm	0.094 in	Black	Adhesive Lined Flame Retardant	40.01 mm	1.575 "	13 mm	0.512 in	-55 C	125 °C	3 to 1	Tubing Flexible	80 °C	40 °C	14 °F	-50 °F	40 °C	Polyolefin (PO)

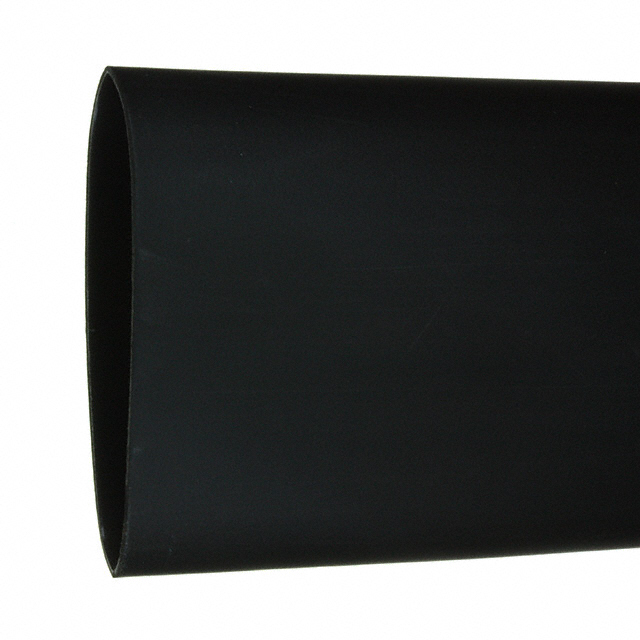

Qualtek Q5-3X-1 1/2-01-QB48IN-5	60 Months			2.4 mm	0.094 in	Black	Adhesive Lined Flame Retardant	40.01 mm	1.575 "	13 mm	0.512 in	-55 C	125 °C	3 to 1	Tubing Flexible	80 °C	40 °C	14 °F	-50 °F	40 °C	Polyolefin (PO)	4 ft	1.22 m
Qualtek Q5-3X-1 1/2-01-QB6IN-5	60 Months	0.5 '	152.4 mm	2.4 mm	0.094 in	Black	Adhesive Lined Flame Retardant	40.01 mm	1.575 "	13 mm	0.512 in	-55 C	125 °C	3 to 1	Tubing Flexible	80 °C	40 °C	14 °F	-50 °F	40 °C	Polyolefin (PO)			6 "
