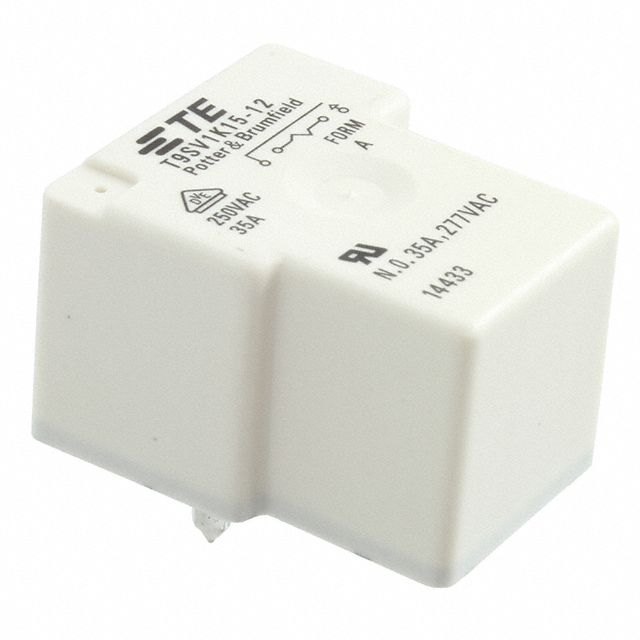

T9SV1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPST 35A 12V
| Part | Coil Resistance | Contact Material | Seal Rating | Load - Max Switching | Approval Agency | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Relay Type | Coil Current | Termination Style | Mounting Type | Contact Rating (Current) | Contact Form | Operate Time | Coil Insulation | Coil Type | Must Release Voltage | Switching Voltage [Max] | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 64 Ohms | Silver Nickel (AgNi) | Sealed - Flux Protection | 9695 VA | UR VDE | 12 VDC | 85 °C | -40 C | 15 ms | General Purpose | 188 mA | PC Pin | Through Hole | 35 A | SPST-NO (1 Form A) | 18 ms | Class F | Non Latching | 0.8 VDC | 277 VAC | 9.6 VDC |
