39K202 Series
Manufacturer: Rosenberger
Beta
⌘K

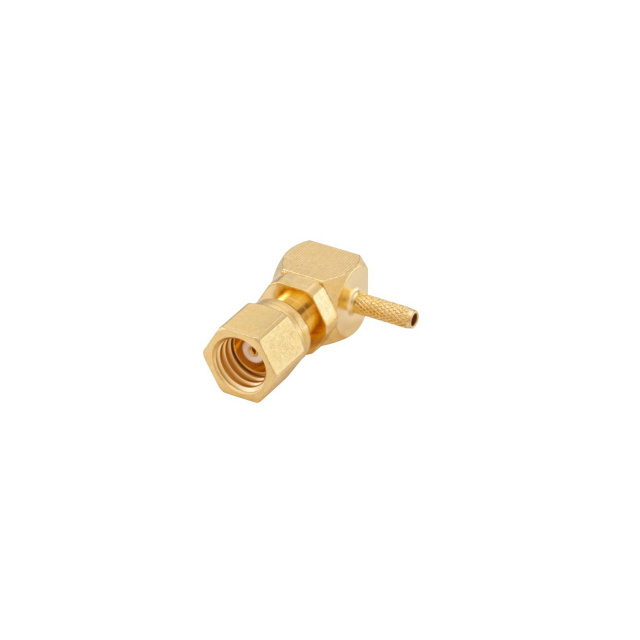

SMC RIGHT ANGLE JACK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Center Contact Plating | Dielectric Material | Mating Cycles | Body Finish | Voltage Rating | Center Contact Material | Contact Termination | Connector Style | Mounting Type | Housing Color | Impedance | Frequency - Max [Max] | Cable Group | Number of Ports | Connector Type | Shield Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 155 C | -55 C | Brass | Gold | Polytetrafluoroethylene (PTFE) | 500 | Gold | 250 V | Beryllium Copper | Solder | SMC | Free Hanging (In-Line) Right Angle | Gold | 50 Ohms | 6000 MHz | 196A RG-178B | 1 | Female Socket Jack | Crimp | Threaded |
