2199300 Series

Catalog

IC & COMPONENT SOCKET, 32 CONTACTS, DIP SOCKET, 2.54 MM, DIPLOMATE SERIES, 15.24 MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Contact Material - Post	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Material - Mating	Pitch - Post	Pitch - Post	Type	Type	Type	Mounting Type	Features	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Material Flammability Rating	Housing Material

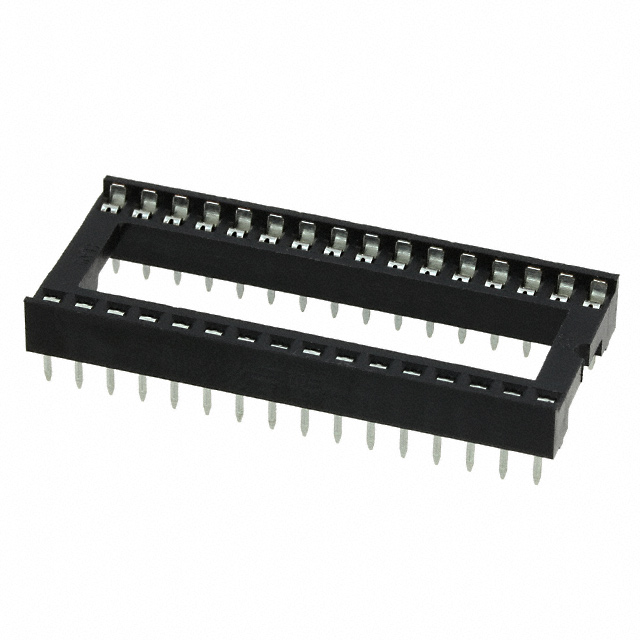

TE Connectivity Raychem Cable Protection 1-2199300-2	60 Áin	1.52 Ám	Tin-Lead	Solder	Brass Copper	20 mOhm	-55 °C	125 °C	0.1 in	2.54 mm	Tin-Lead	Phosphor Bronze	2.54 mm	0.1 in	DIP	0.6 in	15.24 mm	Through Hole	No Center Bar Open Frame	1 A	60 µin	1.52 µm	76.2 mm	3 in	2 x 16	32	UL94 V-0	Polyester
