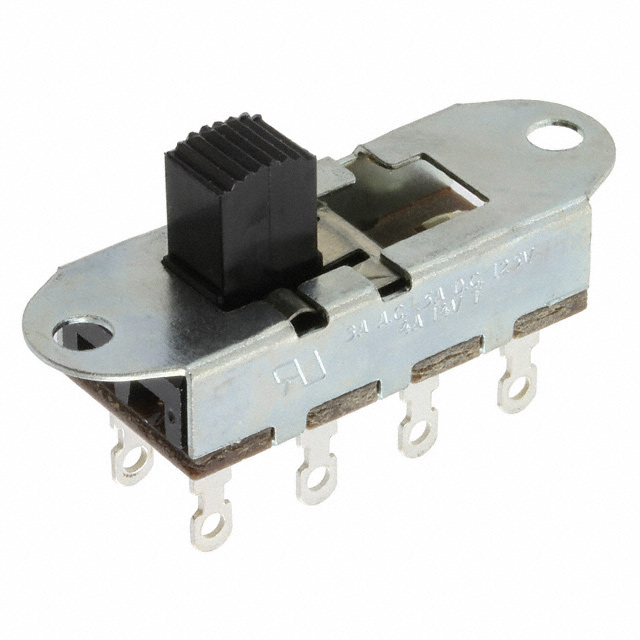

G-328S Series
Manufacturer: CW Industries
Beta
⌘K
SLIDE SWITCHES DP3P 3A 125 VAC SLIDE SWITCH
| Part | Switch Travel | Mechanical Life | Electrical Life | Actuator Material | Contact Material | Contact Timing | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Current Rating (Amps) | Actuator Length [x] | Voltage Rating - DC | Termination Style | Switch Function | Mounting Type | Contact Finish | Voltage Rating - AC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

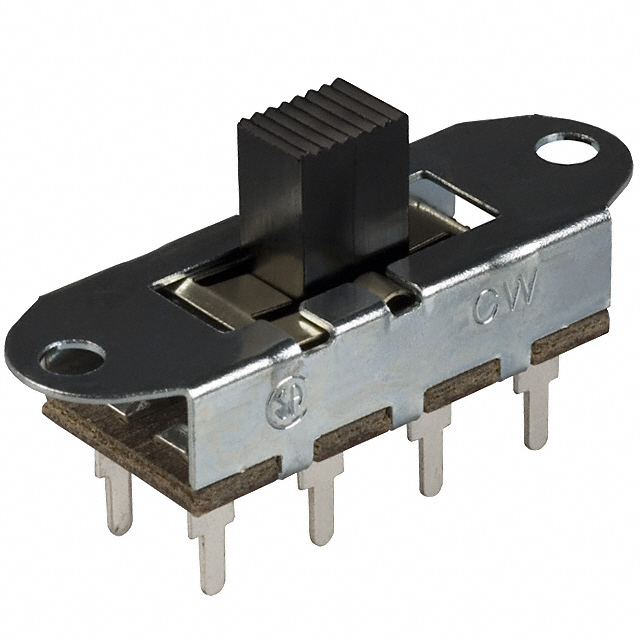

 CW Industries | 6.25 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Copper | Not Specified | -10 °C | 104 °C | Standard | 3 A 500 mA | 8.74 mm | 125 VDC | PC Pin | On-On-On | Panel Mount | Silver | 125 V | DP3T |
 CW Industries | 6.25 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Copper | Not Specified | -10 °C | 104 °C | Standard | 3 A 500 mA | 8.74 mm | 125 VDC | Solder Lug | On-On-On | Panel Mount | Silver | 125 V | DP3T |
 CW Industries | 6.25 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Copper | Not Specified | -10 °C | 104 °C | Standard | 3 A 500 mA | 8.74 mm | 125 VDC | Wire Wrap | On-On-On | Panel Mount | Silver | 125 V | DP3T |
