32K103 Series
Manufacturer: Rosenberger
Beta
⌘K

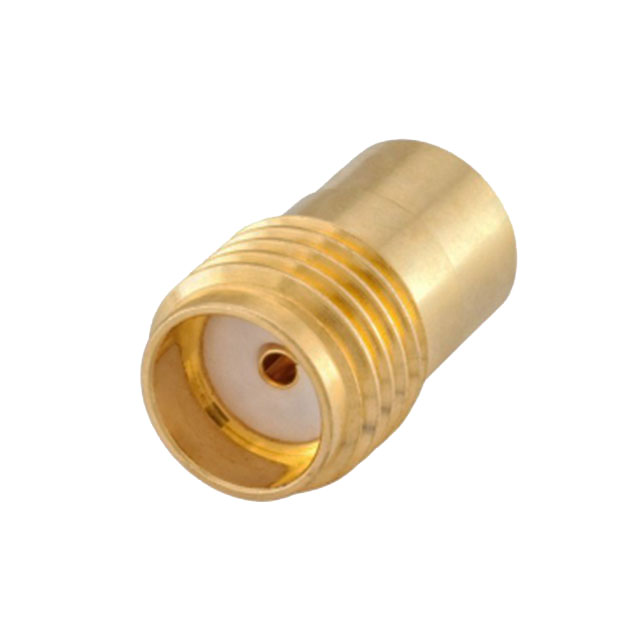

CONN SMA JACK STR 50OHM SOLDER
| Part | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Dielectric Material | Center Contact Plating | Impedance | Number of Ports | Mounting Type | Frequency - Max [Max] | Housing Color | Connector Style | Center Contact Material | Shield Termination | Contact Termination | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | Gold | -55 C | 125 °C | Beryllium Copper | 480 V | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | 1 | Panel Mount | 18 GHz | Gold | SMA | Beryllium Copper | Solder | Solder | Female Socket Jack | Threaded |
