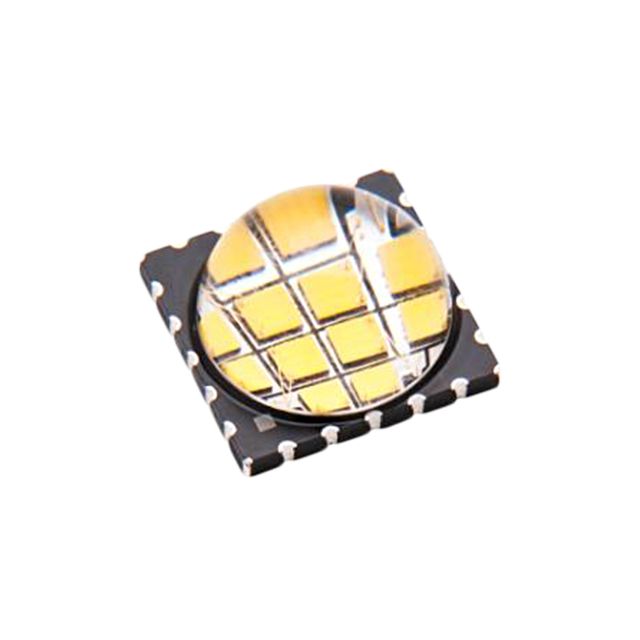

LZC-C0 Series

Catalog

LED MOD LUXIGEN WH STARBRD

Part	Voltage - Forward (Vf) (Typ)	Type	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Current - Max [Max]	Temperature - Test	Size / Dimension [diameter]	CRI (Color Rendering Index)	Height [z]	Current - Test	Current - Test [custom]	Viewing Angle	Light Emitting Surface (LES) [diameter]	Configuration	CCT (K)	CCT (K)	Color	Lens Type	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Wavelength
ams-OSRAM USA INC. LZC-C0GW00-0030	19.4 V	LED Module	1696 lm	1085 lm	1 A	25 °C	28.3 mm	98	6.9 mm	700 mA	2	110 °	8.2 mm	Starboard	3-Step MacAdam Ellipse	3000 K	Warm White	Domed
ams-OSRAM USA INC. LZC-C0GW00-0430	19.4 V	LED Module	1696 lm	1085 lm		25 °C	28.3 mm	95	6.9 mm	700 mA	2	110 °	8.2 mm	Starboard		3000 K	Warm White	Domed	52 lm/W	1400 lm
ams-OSRAM USA INC. LZC-C0GW00-0028	19.4 V	LED Module	1696 lm	1085 lm	1 A	25 °C	28.3 mm	98	6.9 mm	700 mA	2	110 °	8.2 mm	Starboard	3-Step MacAdam Ellipse	2850 K	Warm White	Domed
ams-OSRAM USA INC. LZC-C0CW00-0065	42 V	LED Module	2120 lm	1696 lm	1 A	25 °C	28.28 mm	70	7.1 mm			110 °	8.2 mm	Starboard		6500 K	Cool White	Domed	65 lm/W	1908 lm
ams-OSRAM USA INC. LZC-C0WW00-0235	42 V	LED Module	2120 lm	1085 lm	1 A	25 °C	28.28 mm	85	7.1 mm			110 °	8.2 mm	Starboard		3500 K	Warm White	Domed	55 lm/W	1603 lm
ams-OSRAM USA INC. LZC-C0WW00-0427	42 V	LED Module	2120 lm	1085 lm	1 A	25 °C	28.28 mm	85	7.1 mm			110 °	8.2 mm	Starboard		2700 K	Warm White	Domed	55 lm/W	1603 lm
ams-OSRAM USA INC. LZC-C0CW0R-0065	18.9 V	LED Module	3200 lm	1908 lm	1 A	25 °C	28.3 mm	70	6.9 mm	700 mA	2	110 °	8.2 mm	Starboard		6500 K	Cool White	Domed	89 lm/W
ams-OSRAM USA INC. LZC-C0NW0R-0040		LED Module	2120 lm	1696 lm	1 A	25 °C	28.3 mm	82	6.9 mm			110 °	8.2 mm	Starboard		4000 K	Neutral White	Domed	72 lm/W	1908 lm
ams-OSRAM USA INC. LZC-C0UB00-00U8		LED Module			1 A	25 °C	28.28 mm		7.1 mm	700 mA	2	115 °	8.2 mm	Starboard			Violet	Domed			408 nm
ams-OSRAM USA INC. LZC-C0WW00-0035	42 V	LED Module	2120 lm	1085 lm	1 A	25 °C	28.28 mm	85	7.1 mm			110 °	8.2 mm	Starboard		3500 K	Warm White	Domed	55 lm/W	1603 lm
