1003-002 Series
Manufacturer: CNC Tech
Beta
⌘K
USB 3.0, 9P, A/F, SMT, R/A, HOR
| Part | Shell/Shielding Material | Insulation Color | Material Flammability Rating | Contact Finish | Number of Contacts | Gender | Number of Ports | Mounting Type | Mounting Feature | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Connector Type | Specifications | Shielding | Mating Cycles | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

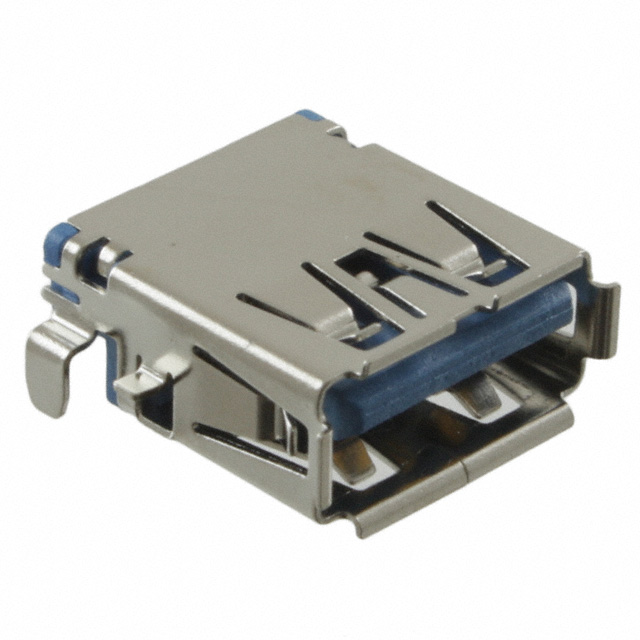

 CNC Tech | Brass | Blue | UL94 V-0 | Gold | 9 | Receptacle | 1 | Right Angle Surface Mount | Horizontal | 0.25 A 1.8 A | -40 C | 105 ░C | Solder | USB-A (USB TYPE-A) | USB 3.2 Gen 1 (USB 3.1 Gen 1 Superspeed (USB 3.0)) | Unshielded | ||

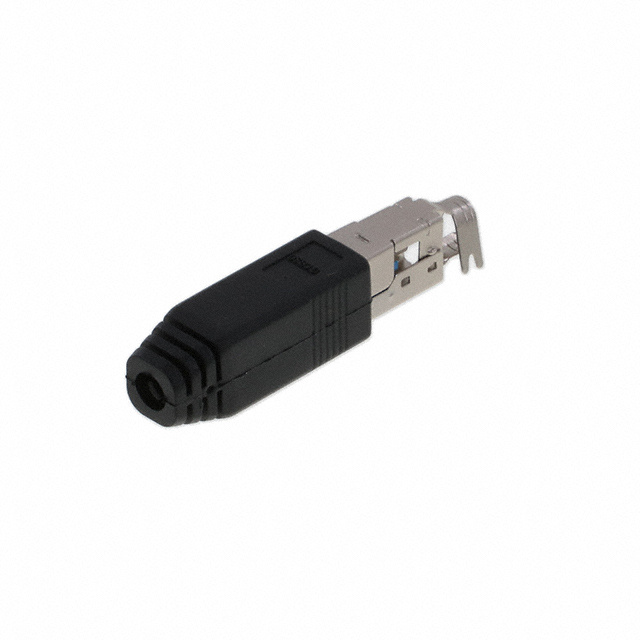

 CNC Tech | Black | UL94 V-0 | Gold | 9 | Plug | 1 | Free Hanging (In-Line) | Solder | USB-B (USB TYPE-B) | USB 3.2 Gen 1 (USB 3.1 Gen 1 Superspeed (USB 3.0)) | ||||||||

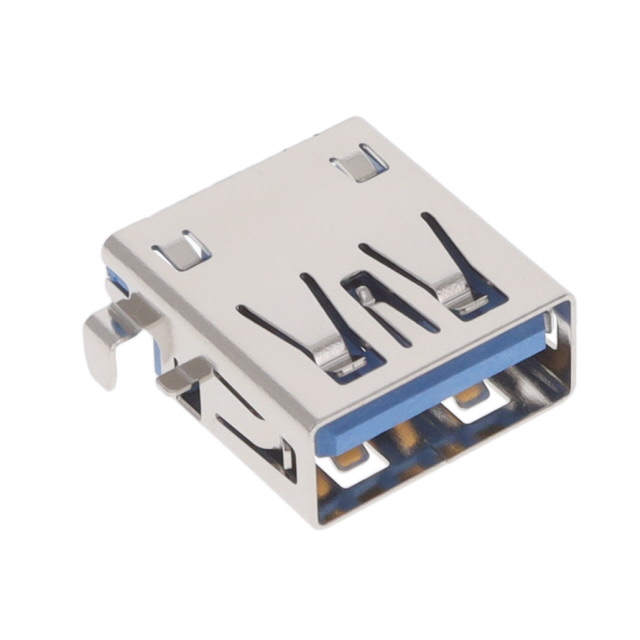

 CNC Tech | Brass | UL94 V-0 | Gold | 9 | Receptacle | 1 | Right Angle Surface Mount | Horizontal | 1.5 A | -25 °C | 85 °C | Solder | USB-A (USB TYPE-A) | USB 3.2 Gen 1 (USB 3.1 Gen 1 Superspeed (USB 3.0)) | 1500 | Board Lock Solder Retention |
