D2T Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACT DPST-NO 5A 125V
| Part | Electrical Life | Mounting Type | Termination Style | Ingress Protection | Operating Force | Mechanical Life | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Voltage Rating - AC | Circuit | Overtravel [custom] | Overtravel [custom] | Switch Function | Release Force | Operating Temperature [Max] | Operating Temperature [Min] | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

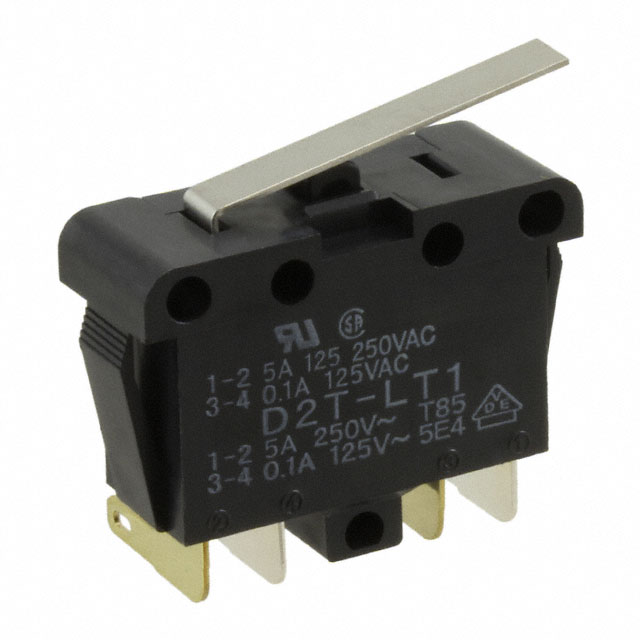

 Omron Electronics Inc-EMC Div | 100000 Cycles | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | 150 gf | 100000 Cycles | 5 A 6 A | 30 V | Lever Straight | 125 V | DPST-NO | 0.062 " | 1.6 mm | Off-Mom | 20 gf | 85 °C | -25 °C | 0.272 in | 6.9 mm |

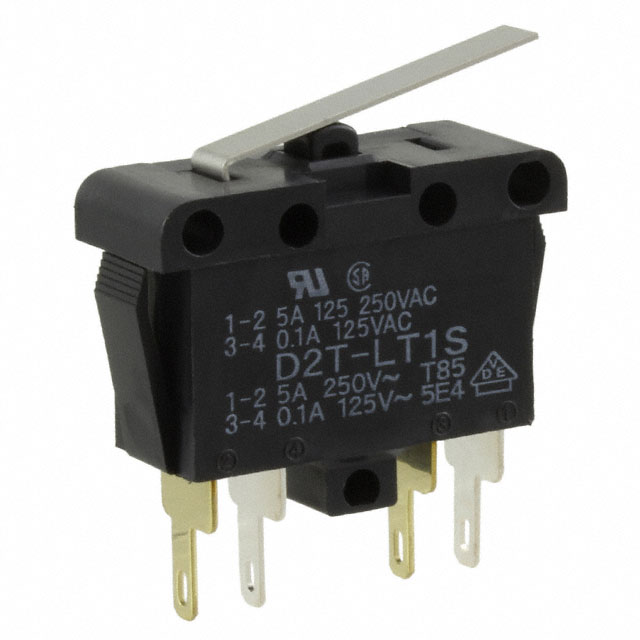

 Omron Electronics Inc-EMC Div | 100000 Cycles | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | 150 gf | 100000 Cycles | 5 A 6 A | 30 V | Lever Straight | 125 V | DPST-NO | 0.062 " | 1.6 mm | Off-Mom | 20 gf | 85 °C | -25 °C | 0.272 in | 6.9 mm |
