TPS7A88-Q1 Series

Automotive 1-A, low-noise, high-accuracy, dual-channel adjustable low-dropout voltage regulator

Catalog

Automotive 1-A, low-noise, high-accuracy, dual-channel adjustable low-dropout voltage regulator

Part	Voltage Dropout (Max) [Max]	PSRR	Current - Quiescent (Iq)	Number of Regulators	Current - Supply (Max) [Max]	Protection Features	Supplier Device Package	Package / Case	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Current - Output	Voltage - Input (Max) [Max]	Grade	Output Type	Mounting Type	Voltage - Output (Min/Fixed)	Output Configuration	Control Features	Voltage - Output (Max)	Utilized IC / Part	Voltage - Output [Max]	Voltage - Output [Min]	Board Type	Regulator Type	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Channels per IC
Texas Instruments TPS7A8801QRTJRQ1	0.225 V	40 dB	3.5 mA	2	4 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	20-WQFN (4x4)	20-WFQFN Exposed Pad	5.15 V	-40 °C	140 °C	AEC-Q100	1 A	6.5 V	Automotive	Adjustable	Surface Mount	0.8 V	Positive	Enable Power Good Soft Start

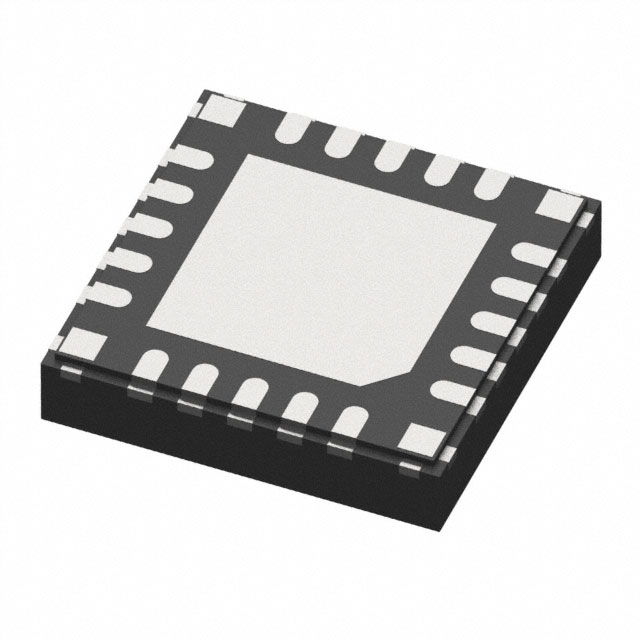

Texas Instruments TPS7A8801RTJR	0.2 V	40 dB	3.5 mA	2	4 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	20-QFN (4x4)	20-WFQFN Exposed Pad		-40 °C	125 ¯C		1 A	6.5 V		Adjustable	Surface Mount	0.8 V	Positive	Enable Power Good Soft Start	5 V

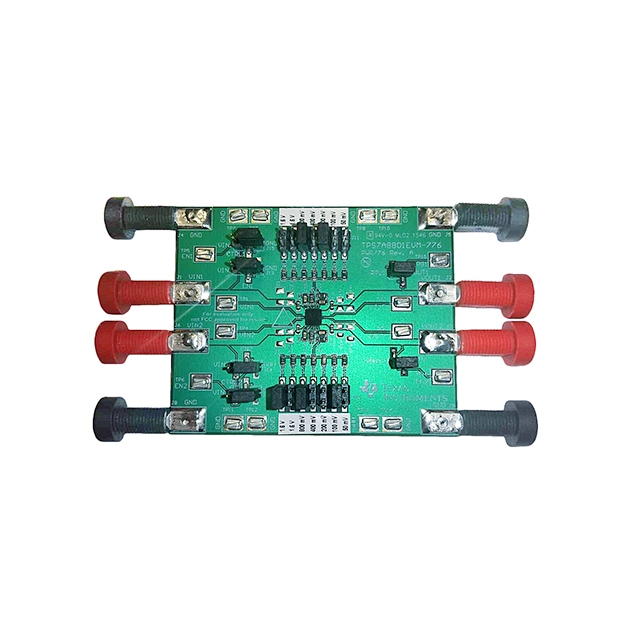

Texas Instruments TPS7A8801EVM-776													1 A									TPS7A8801	5 V	0.8 V	Fully Populated	Positive Adjustable	6.5 V	1.4 V	Board(s)	2 - Dual
Texas Instruments TPS7A8801RTJT	0.2 V	40 dB	3.5 mA	2	4 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	20-QFN (4x4)	20-WFQFN Exposed Pad		-40 °C	125 ¯C		1 A	6.5 V		Adjustable	Surface Mount	0.8 V	Positive	Enable Power Good Soft Start	5 V

Catalog

Automotive 1-A, low-noise, high-accuracy, dual-channel adjustable low-dropout voltage regulator

Key Features

• AEC-Q100 Qualified With the Following Results:Temperature Grade 1: –40°C ≤ TA≤ +125°CHBM ESD Classification Level 2CDM ESD Classification Level C5Two Independent LDO ChannelsLow Output Noise: 4 µVRMS(10 Hz to 100 kHz)Low Dropout: 230 mV (Maximum) at 1 AWide Input Voltage Range: 1.4 V to 6.5 VWide Output Voltage Range: 0.8 V to 5.15 VHigh Power-Supply Ripple Rejection:70 dB at 100 Hz40 dB at 100 kHz40 dB at 1 MHz1% Accuracy Over Line, Load, and TemperatureExcellent Load Transient ResponseAdjustable Start-Up Inrush ControlSelectable Soft-Start Charging CurrentIndependent Open-Drain Power-Good (PG) OutputsStable With a 10-µF or Larger Ceramic Output CapacitorLow Thermal Resistance: RθJA= 39.8°C/W4-mm × 4-mm Wettable Flank WQFN PackageAEC-Q100 Qualified With the Following Results:Temperature Grade 1: –40°C ≤ TA≤ +125°CHBM ESD Classification Level 2CDM ESD Classification Level C5Two Independent LDO ChannelsLow Output Noise: 4 µVRMS(10 Hz to 100 kHz)Low Dropout: 230 mV (Maximum) at 1 AWide Input Voltage Range: 1.4 V to 6.5 VWide Output Voltage Range: 0.8 V to 5.15 VHigh Power-Supply Ripple Rejection:70 dB at 100 Hz40 dB at 100 kHz40 dB at 1 MHz1% Accuracy Over Line, Load, and TemperatureExcellent Load Transient ResponseAdjustable Start-Up Inrush ControlSelectable Soft-Start Charging CurrentIndependent Open-Drain Power-Good (PG) OutputsStable With a 10-µF or Larger Ceramic Output CapacitorLow Thermal Resistance: RθJA= 39.8°C/W4-mm × 4-mm Wettable Flank WQFN Package

Description

The TPS7A88-Q1 is a dual, low-noise (4 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 1 A per channel with 250 mV of maximum dropout. The TPS7A88-Q1 provides the flexibility of two independent LDOs and approximately 50% smaller solution size than two single-channel LDOs. Each output is adjustable with external resistors from 0.8 V to 5.15 V. The TPS7A88-Q1 wide input-voltage range supports operation as low as 1.4 V and up to 6.5 V. With 1% output voltage accuracy (over line, load, and temperature) and soft-start capabilities to reduce in-rush current, the TPS7A88-Q1 is ideal for powering sensitive analog low-voltage devices (such as voltage-controlled oscillators [VCOs], analog-to-digital converters [ADCs], digital-to-analog converters [DACs], high-end processors, and field-programmable gate arrays [FPGAs]). The TPS7A88-Q1 is designed to power noise-sensitive components such as those found in RF, radar communications, and telematic applications. The low 4-µVRMSoutput noise and wideband PSRR (40 dB at 1 MHz) minimizes phase noise and clock jitter. These features maximize performance of clocking devices, ADCs, and DACs. The TPS7A88-Q1 features wettable flanks for simple optical inspection. The TPS7A88-Q1 is a dual, low-noise (4 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 1 A per channel with 250 mV of maximum dropout. The TPS7A88-Q1 provides the flexibility of two independent LDOs and approximately 50% smaller solution size than two single-channel LDOs. Each output is adjustable with external resistors from 0.8 V to 5.15 V. The TPS7A88-Q1 wide input-voltage range supports operation as low as 1.4 V and up to 6.5 V. With 1% output voltage accuracy (over line, load, and temperature) and soft-start capabilities to reduce in-rush current, the TPS7A88-Q1 is ideal for powering sensitive analog low-voltage devices (such as voltage-controlled oscillators [VCOs], analog-to-digital converters [ADCs], digital-to-analog converters [DACs], high-end processors, and field-programmable gate arrays [FPGAs]). The TPS7A88-Q1 is designed to power noise-sensitive components such as those found in RF, radar communications, and telematic applications. The low 4-µVRMSoutput noise and wideband PSRR (40 dB at 1 MHz) minimizes phase noise and clock jitter. These features maximize performance of clocking devices, ADCs, and DACs. The TPS7A88-Q1 features wettable flanks for simple optical inspection.
