UTG01 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSNG MALE 8POS PNL MNT

Part	Type	Note	Orientation	Shell Material	Connector Type	Housing Color	Fastening Type	Mounting Type	Contact Size	Contact Shape	Shielding	Insert Material	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Shell Size - Insert Length	Shell Size - Insert Width	Number of Positions	Mounting Feature	Ingress Protection IP Rating	Ingress Protection Description	Position Types	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
Amphenol Aerospace Operations UTG0128P	For Male Pins	Contacts Not Included	N (Normal)	Glass Filled Polyester	Receptacle Housing	Black Silver	Bayonet Lock	Panel Mount	16 S	Circular	Unshielded	Glass Filled Thermoplastic	Crimp	125 °C	-55 °C	UL94 V-0	12 mm	8 mm	8	Flange

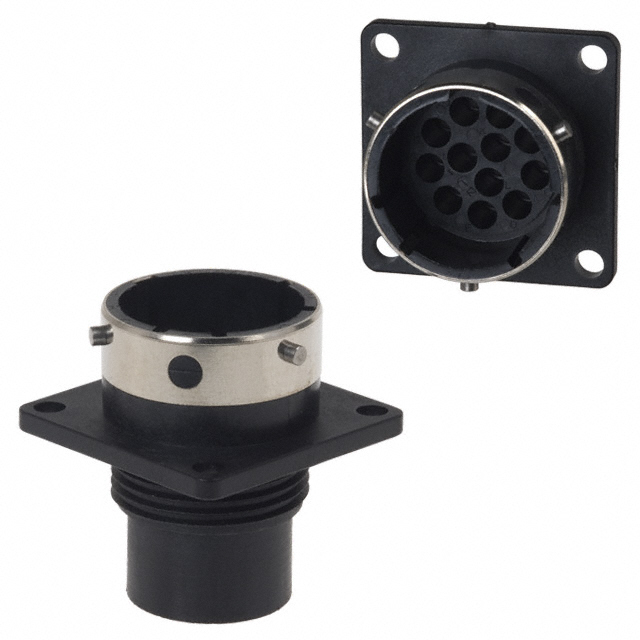

Amphenol Aerospace Operations UTG01412P	For Male Pins	Contacts Not Included	N (Normal)	Glass Filled Polyester	Receptacle Housing	Black Silver	Bayonet Lock	Panel Mount	16 S	Circular	Unshielded	Glass Filled Thermoplastic	Crimp	125 °C	-55 °C	UL94 V-0	14 mm	12 mm	12	Flange
Amphenol Aerospace Operations UTG0148PH	For Male Pins	Contacts Not Included	N (Normal)	Glass Filled Polyester	Receptacle Housing	Black Silver	Bayonet Lock	Panel Mount	12 16	Circular	Unshielded	Glass Filled Thermoplastic	Crimp	125 °C	-55 °C	UL94 V-0	14 mm	8 mm	8	Flange	IP65	Dust Tight Water Resistant	PE

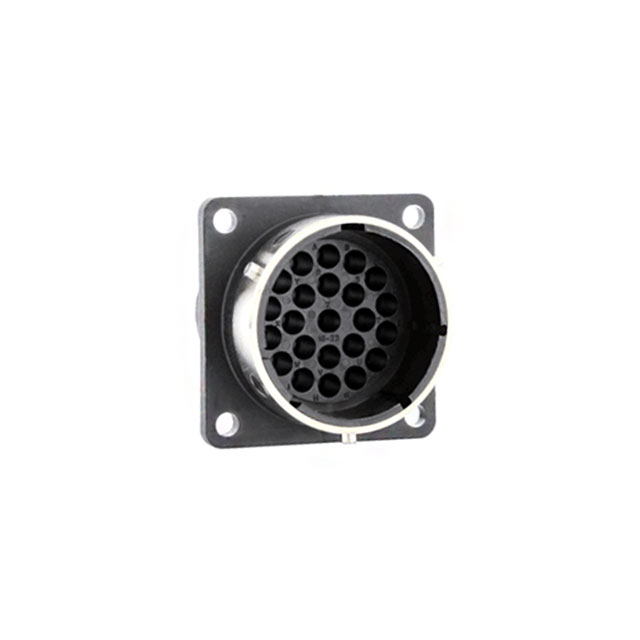

Amphenol Aerospace Operations UTG01823PH	For Male Pins	Contacts Not Included	N (Normal)	Glass Filled Polyester	Receptacle Housing	Black Silver	Bayonet Lock	Panel Mount	16 S	Circular	Unshielded	Glass Filled Thermoplastic	Crimp	125 °C	-55 °C	UL94 V-0			23	Flange	IP65	Dust Tight Water Resistant		23	18
Amphenol Aerospace Operations UTG0148S	For Female Sockets	Contacts Not Included	N (Normal)	Glass Filled Polyester	Receptacle Housing	Black Silver	Bayonet Lock	Panel Mount	12 16	Circular	Unshielded	Glass Filled Thermoplastic	Crimp	125 °C	-55 °C	UL94 V-0	14 mm	8 mm	8	Flange			PE
Amphenol Aerospace Operations UTG012-8S	For Female Sockets	Contacts Not Included	N (Normal)	Glass Filled Polyester	Receptacle Housing	Black Silver	Bayonet Lock	Panel Mount	16 S	Circular	Unshielded	Glass Filled Thermoplastic	Crimp	125 °C	-55 °C	UL94 V-0	12 mm	8 mm	8	Flange
Amphenol Aerospace Operations UTG012-8SH	For Female Sockets	Contacts Not Included	N (Normal)	Glass Filled Polyester	Receptacle Housing	Black Silver	Bayonet Lock	Panel Mount	16 S	Circular	Unshielded	Glass Filled Thermoplastic	Crimp	125 °C	-55 °C	UL94 V-0	12 mm	8 mm	8	Flange	IP65	Dust Tight Water Resistant
Amphenol Aerospace Operations UTG010-4S	For Female Sockets	Contacts Not Included	N (Normal)	Glass Filled Polyester	Receptacle Housing	Black Silver	Bayonet Lock	Panel Mount	16 S	Circular	Unshielded	Glass Filled Thermoplastic	Crimp	125 °C	-55 °C	UL94 V-0	10 mm	4 mm	4	Flange
Amphenol Aerospace Operations UTG01619P	For Male Pins	Contacts Not Included	N (Normal)	Glass Filled Polyester	Receptacle Housing	Black Silver	Bayonet Lock	Panel Mount	16 S	Circular	Unshielded	Glass Filled Thermoplastic	Crimp	125 °C	-55 °C	UL94 V-0			19	Flange				19	16 S
Amphenol Aerospace Operations UTG018-23P	For Male Pins	Contacts Not Included	N (Normal)	Glass Filled Polyester	Receptacle Housing	Black Silver	Bayonet Lock	Panel Mount	16 S	Circular	Unshielded	Glass Filled Thermoplastic	Crimp	125 °C	-55 °C	UL94 V-0			23	Flange				23	18
