2EDN7523 Series

Manufacturer: INFINEON

Catalog

IC GATE DRVR LOW-SIDE 8WSON

Part	Gate Type	Mounting Type	Rise / Fall Time (Typ)	Driven Configuration	Number of Drivers	Input Type	Package / Case	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Channel Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Package / Case	Logic Voltage - VIL, VIH

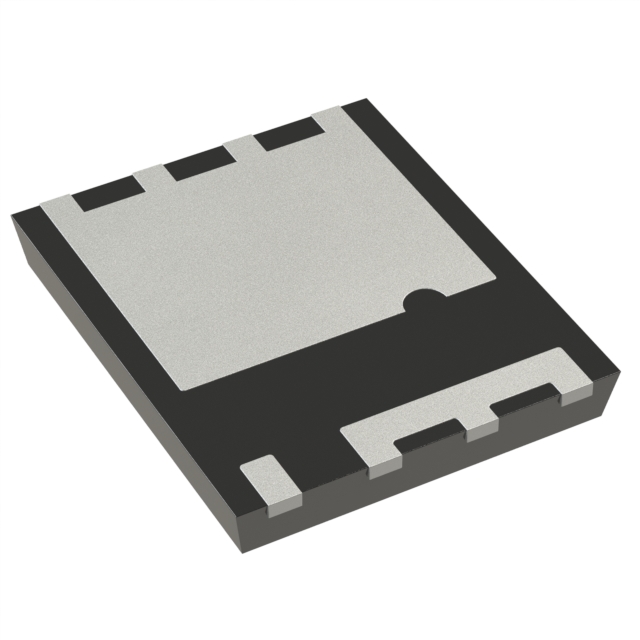

INFINEON 2EDN7523GXTMA1	MOSFET (N-Channel) N-Channel MOSFET	Surface Mount	4.5 ns 5.3 ns	Low-Side	2	Inverting	8-WDFN Exposed Pad	5 A	5 A	PG-WSON-8-1	20 V	4.5 V	Independent	-40 °C	150 °C
INFINEON 2EDN7523FXTMA1	MOSFET (N-Channel) N-Channel MOSFET	Surface Mount	4.5 ns 5.3 ns	Low-Side	2	Inverting	8-SOIC	5 A	5 A		20 V	4.5 V	Independent	-40 °C	150 °C	0.154 in	3.9 mm

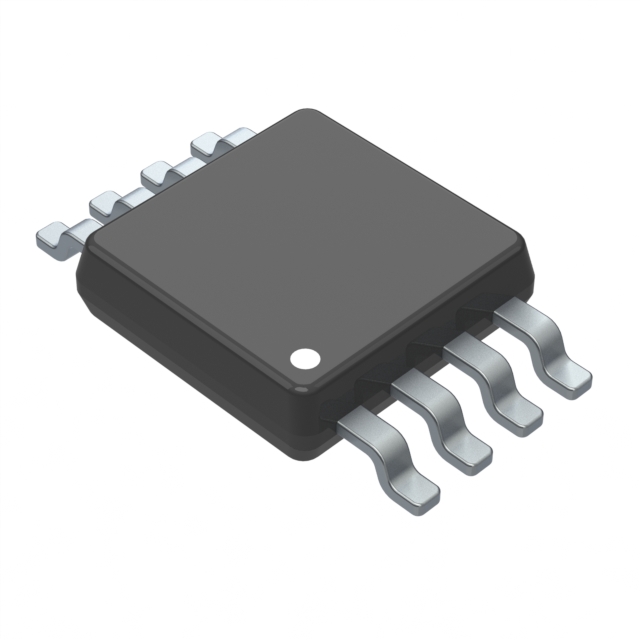

INFINEON 2EDN7523RXUMA1	MOSFET (N-Channel) N-Channel MOSFET	Surface Mount	4.5 ns 5.3 ns	Low-Side	2	Inverting	8-MSOP 8-TSSOP	5 A	5 A		20 V	4.5 V	Independent	-40 °C	150 °C			0.118 in 3 mm Width
INFINEON 2EDN7523RXTMA1	MOSFET (N-Channel)	Surface Mount	4.5 ns 5.3 ns	Low-Side	2	Non-Inverting	8-MSOP 8-TSSOP	5 A	5 A		20 V	4.5 V	Independent	-40 °C	150 °C			0.118 in 3 mm Width	1.1 V 1.98 V
