ALD-E Series

Catalog

LED POWER SUPPLIES BUCK LED DRIVER WITH DALI, 11 50VDC INPUT, 8-45VDC OUTPUT, 500MA OUTPUT CURRENT

Part	Power (Watts)	Features	Type	Current - Output (Max)	Number of Outputs	Package Leads	Package Name	Voltage - Input (Max)	Topology	Approval Agency	Voltage - Output (Max)	Voltage - Output (Min)	Efficiency	Dimming	Voltage - Input (Min)	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)

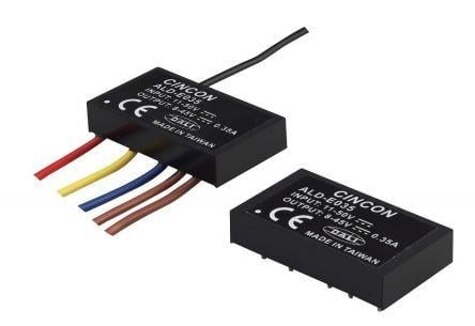

Cincon Electronics Co. LTD ALD-E050	50.4 W	SCP	Constant Current	500 mA	1	8 Leads	16-DIP Module	50 V p-p	Buck	CE	45 V	8 V	95 %	Analog	11 V	0.93 in	1.6 in	0.4 in	Through Hole	80 °C	-40 °C
Cincon Electronics Co. LTD ALD-E140	50.4 W	SCP	Constant Current	1.4 A	1	8 Leads	16-DIP Module	40 V	Buck	CE	36 V	8 V	95 %	Analog	11 V	0.93 in	1.6 in	0.4 in	Through Hole	80 °C	-40 °C
Cincon Electronics Co. LTD ALD-E100	50.4 W	SCP	Constant Current	1.05 A	1	8 Leads	16-DIP Module	50 V p-p	Buck	CE	45 V	8 V	95 %	Analog	11 V	0.93 in	1.6 in	0.4 in	Through Hole	80 °C	-40 °C
