TST04 Series

Catalog

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 5.08 MM, 1 ROWS, 4 CONTACTS, THROUGH HOLE STRAIGHT

Part	Current Rating (Amps)	Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Shape	Mounting Type	Voltage Rating	Termination	Shrouding	Insulation Material	Number of Positions	Contact Type	Number of Positions Loaded	Material Flammability Rating	Insulation Color	Fastening Type	Insulation Height [z]	Insulation Height [z]	Connector Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Accessory Type	For Use With/Related Products	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
ITT Cannon, LLC TST04RD01T	10 A	Board to Cable/Wire	-40 C	105 ░C	Mounting Flange	Circular	Through Hole	250 V	Solder	Shrouded - 4 Wall	Nylon Polyamide (PA)	4	Male Pin	All	UL94 V-0	Black	Latch Holder	23.15 mm	0.911 "	Receptacle	0.2 "	5.08 mm	4.7 mm	0.185 in	1

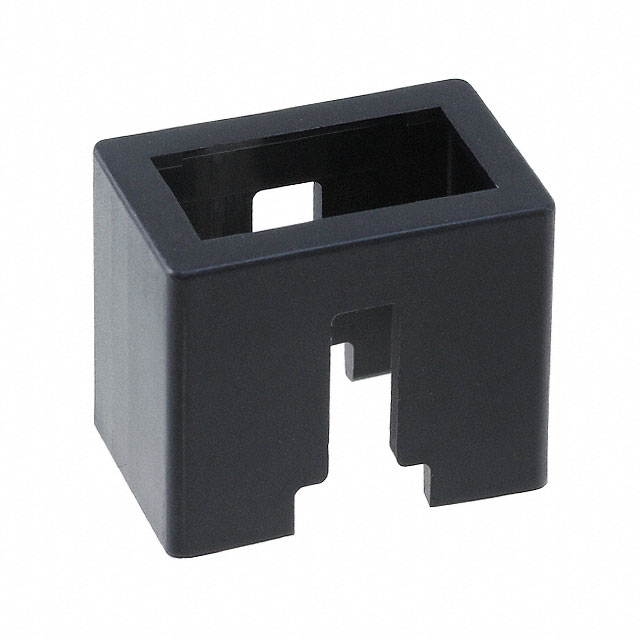

ITT Cannon, LLC TST04AS00												4														Shroud	Trident Rectangular Receptacles
ITT Cannon, LLC TST04RD01Y	10 A	Board to Cable/Wire	-40 C	105 ░C	Mounting Flange	Circular	Through Hole	240 V	Solder	Shrouded - 4 Wall	Nylon Polyamide (PA)	4	Male Pin	All	UL94 V-0	Black	Latch Holder	23.15 mm	0.911 "	Receptacle	0.2 "	5.08 mm	4.7 mm	0.185 in	1			Gold	16 Áin	0.41 Ám

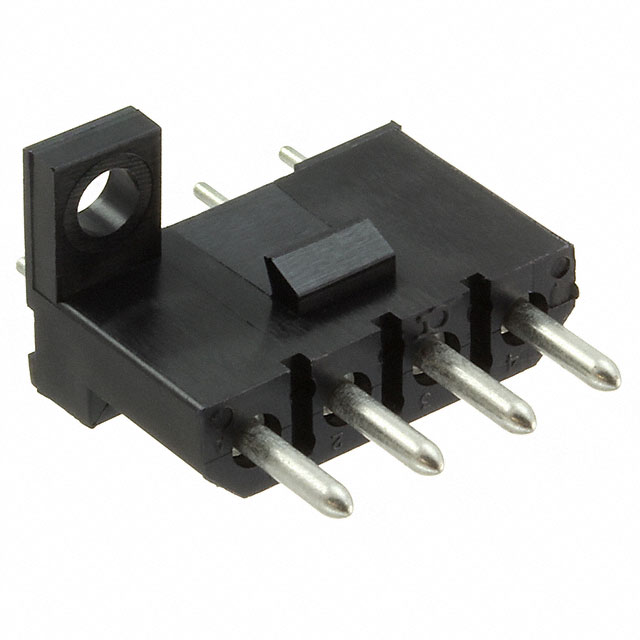

ITT Cannon, LLC TST04RB01T	13 A	Board to Cable/Wire	-40 C	105 ░C	Mounting Flange	Circular	Through Hole	250 V	Solder	Unshrouded	Nylon Polyamide (PA)	4	Male Pin	All	UL94 V-0	Black	Latch Holder			Receptacle	0.2 "	5.08 mm			1						Automotive Industrial	13.5 mm	0.531 in	5.7 mm	0.224 in

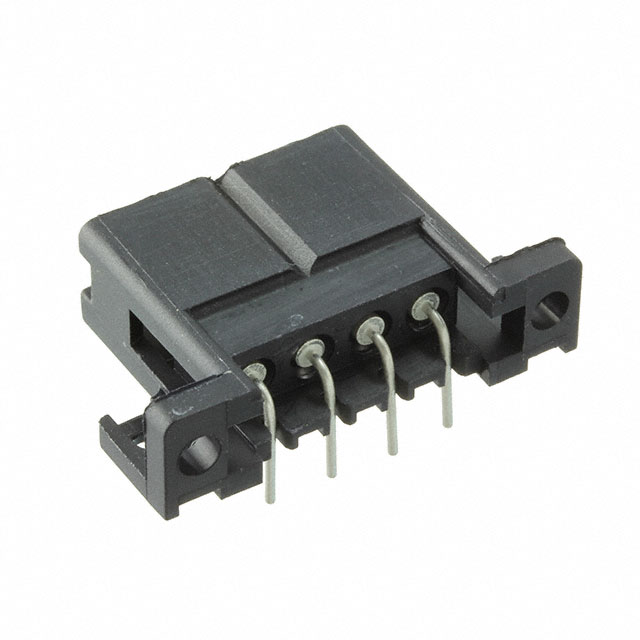

ITT Cannon, LLC TST04RE01T	10 A	Board to Cable/Wire	-40 C	105 ░C	Mounting Flange	Circular	Right Angle Through Hole	250 V	Solder	Shrouded - 4 Wall	Nylon Polyamide (PA)	4	Male Pin	All	UL94 V-0	Black	Latch Holder			Receptacle	0.2 "	5.08 mm		0.157 in	1							9.8 mm	0.386 in	4 mm
