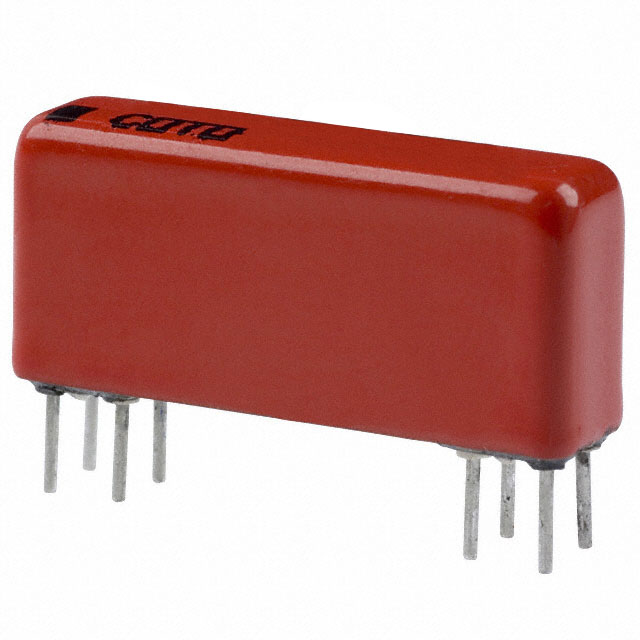

2333 Series
Manufacturer: COTO TECHNOLOGY
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY REED 3PST 500MA 12V
| Part | Coil Resistance | Contact Rating (Current) | Operating Temperature (Max) | Operating Temperature (Min) | Coil Current | Mounting Type | Must Operate Voltage | Coil Type | Must Release Voltage | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Coil Voltage | Seal Rating | Pin Count | Contact Form | Termination Style | Operate Time | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 COTO TECHNOLOGY | 1 kOhms | 500 mA | 85 °C | -20 °C | 12 mA | Through Hole | 9 VDC | Non Latching | 1 VDC | 200 VAC | 200 VDC | 12 VAC | Hermetically Sealed | 3 pins | 3 A Form PST-NO | PC Pin | 0.5 ms | 0.15 ms |
COTO TECHNOLOGY | 175 Ohms | 500 mA | 85 °C | -20 °C | 28.6 mA | Through Hole | 3.8 VDC | Non Latching | 0.4 VDC | 200 VAC | 200 VDC | 5 V | Hermetically Sealed | 3 pins | 3 A Form PST-NO | PC Pin | 0.5 ms | 0.15 ms |
