410M0-15 Series
Manufacturer: CNC Tech
Beta
⌘K

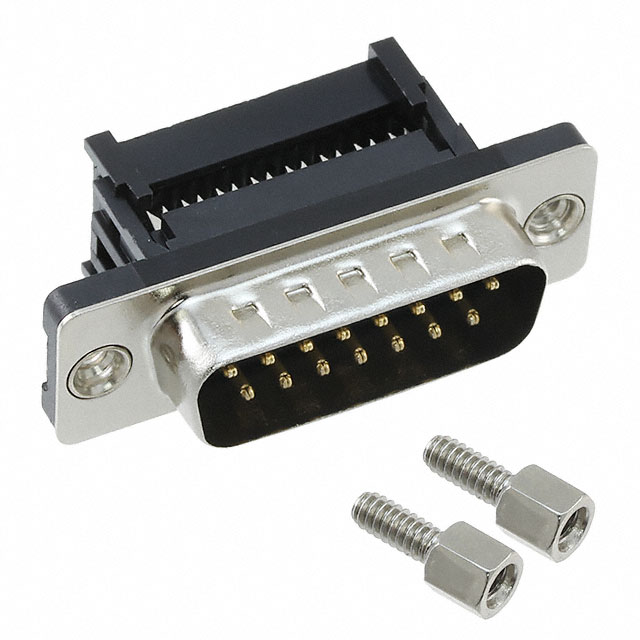

CONN D-SUB PLUG 15POS IDC
| Part | Voltage Rating | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material, Finish | Connector Style | Contact Finish | Mounting Type | Material Flammability Rating | Termination | Features | Connector Type | Shell Size, Connector Layout | Contact Type | Number of Rows [custom] | Flange Feature | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | 250 V | Brass | Polybutylene Terephthalate (PBT) Glass Filled | -40 C | 105 ░C | Nickel Plated Steel | D-Sub | Gold | Free Hanging (In-Line) | UL94 V-0 | IDC Ribbon Cable | Feed Through Grounding Indents | Plug Male Pins | 2 | Signal | 2 | 4-40 Mating Side Female Screwlock | 15 |

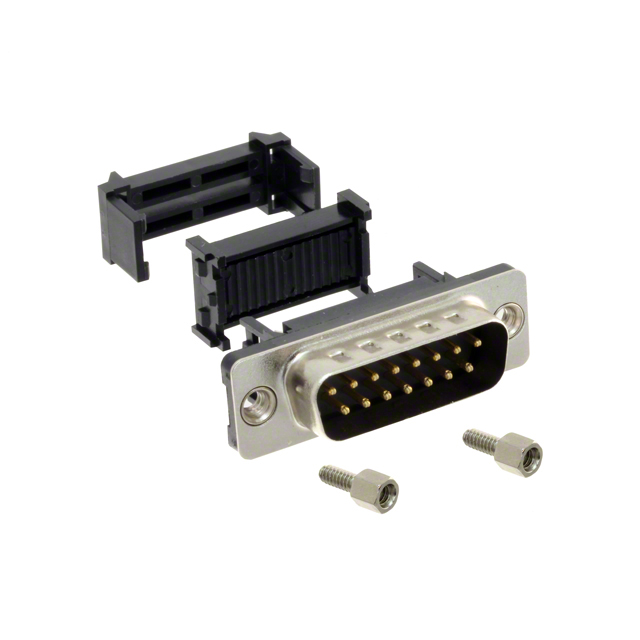

 CNC Tech | 250 V | Brass | Polybutylene Terephthalate (PBT) Glass Filled | -40 C | 105 ░C | Nickel Plated Steel | D-Sub | Gold | Free Hanging (In-Line) | UL94 V-0 | IDC Ribbon Cable | Feed Through Grounding Indents Strain Relief | Plug Male Pins | 2 | Signal | 2 | 4-40 Mating Side Female Screwlock | 15 |
