OSTTC12 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 12P SIDE ENTRY 5MM PCB
| Part | Screw Material - Plating | Contact Material - Plating | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Screw Thread | Clamp Material - Plating [custom] | Color | Mating Orientation | Pitch | Pitch | Voltage | Mounting Type | Features | Current | Number of Levels | Wire Termination | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

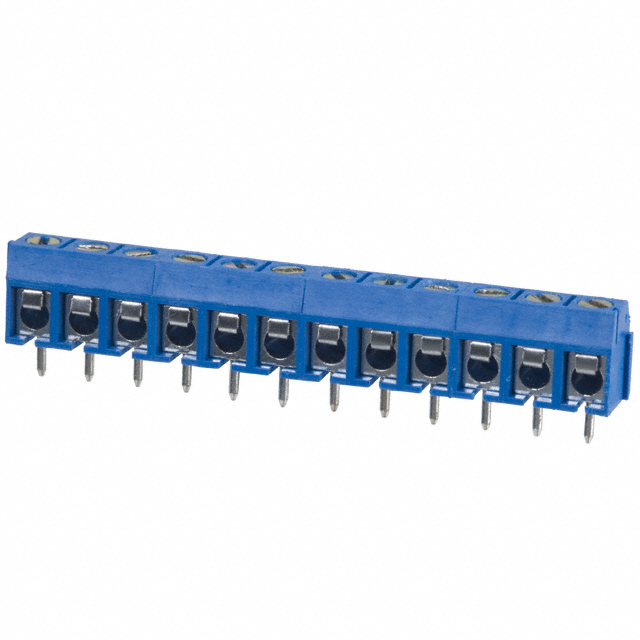

 On Shore Technology Inc. | Steel - Zinc Plated | Tin Plated | Thermoplastic | -30 ░C | 105 ░C | 2.6 Lb-In | 0.3 Nm | M2.6 | Stainless Steel | Blue | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Through Hole | Interlocking (Side) | 15 A | 1 | Screw - Leaf Spring Wire Guard | 12 | 14 AWG | 22 AWG |

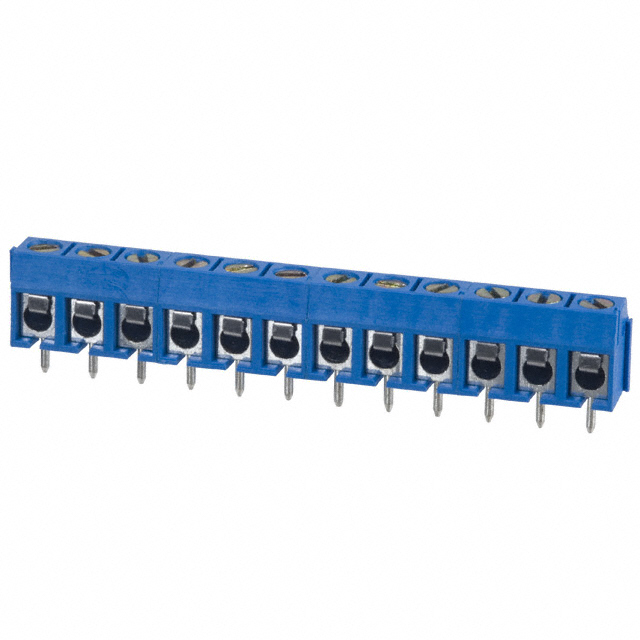

 On Shore Technology Inc. | Steel - Zinc Plated | Tin Plated | Thermoplastic | -30 ░C | 105 ░C | 2.6 Lb-In | 0.3 Nm | M2.6 | Stainless Steel | Blue | Horizontal with Board | 0.2 in | 5.08 mm | 300 VDC | Through Hole | Interlocking (Side) | 15 A | 1 | Screw - Leaf Spring Wire Guard | 12 | 14 AWG | 22 AWG |
