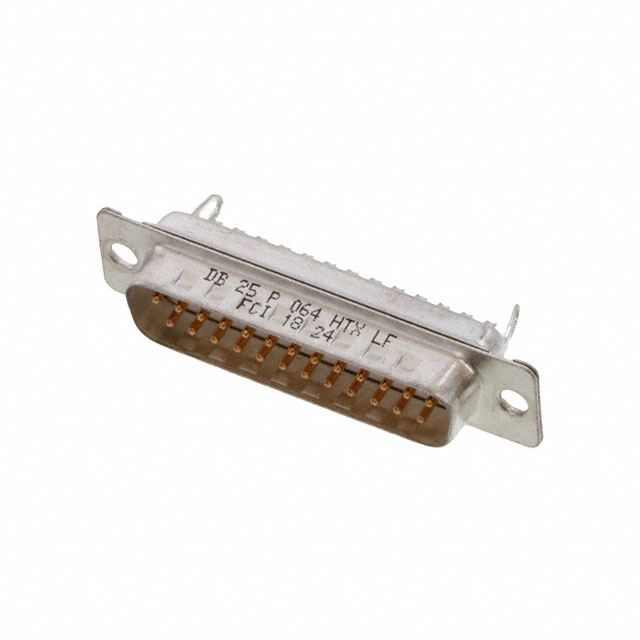

DB25P064 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN D-SUB PLUG 25POS SLDR CUP
| Part | Dielectric Material | Color | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Voltage Rating | Number of Rows | Contact Finish | Features | Connector Style | Contact Type | Connector Type | Current Rating (Amps) | Contact Material | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Thermoplastic | Natural | UL94 V-0 | -55 °C | 125 °C | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | B DB | 3 | 300 VDC | 2 | Gold | Grounding Indents | D-Sub | Signal | Male Pins Plug | 5 A | Copper Alloy | Flash | |
Amphenol ICC (FCI) | Thermoplastic | Natural | -55 °C | 125 °C | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | B DB | 3 | 300 VDC | 2 | Gold | Grounding Indents | D-Sub | Signal | Male Pins Plug | 5 A | Flash | |||
Amphenol ICC (FCI) | Thermoplastic | Natural | -55 °C | 125 °C | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | B DB | 3 | 300 VDC | 2 | Gold | D-Sub | Signal | Male Pins Plug | 5 A | Flash | Steel Zinc Plated | |||
 Amphenol ICC (FCI) | Thermoplastic | Natural | UL94 V-0 | -55 °C | 125 °C | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | B DB | 3 | 300 VDC | 2 | Gold | Grounding Indents Shielded | D-Sub | Signal | Male Pins Plug | 5 A | Copper Alloy | Flash |
