845-100 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 100POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Color	Mounting Type	Card Type	Contact Material	Number of Positions/Bay/Row	Contact Finish	Contact Type	Number of Rows [custom]	Number of Positions	Features	Termination	Pitch	Pitch	Gender	Contact Finish Thickness	Contact Finish Thickness	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

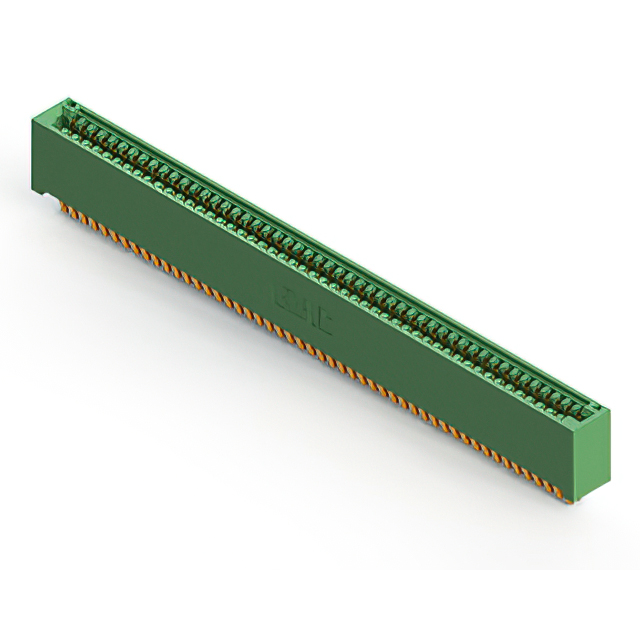

EDAC Inc. 845-100-560-201	2	Diallyl Phthalate (DAP)	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Board Edge Straddle Mount	Non Specified - Dual Edge	Copper Alloy	50	Gold	Cantilever	2	100	Card Extender	Solder	0.1 "	2.54 mm	Female	0.25 Ám	10 Áin	Dual
EDAC Inc. 845-100-542-207	2	Diallyl Phthalate (DAP)	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Through Hole	Non Specified - Dual Edge	Copper Alloy	50	Gold	Cantilever	2	100		Wire Wrap	0.1 "	2.54 mm	Female	0.25 Ám	10 Áin	Dual	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 845-100-544-802	2	Diallyl Phthalate (DAP)	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Through Hole	Non Specified - Dual Edge	Copper Alloy	50	Gold	Cantilever	2	100		Wire Wrap	0.1 "	2.54 mm	Female	0.25 Ám	10 Áin	Dual		3.25 mm	0.128 "
EDAC Inc. 845-100-555-812	2	Diallyl Phthalate (DAP)	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Board Edge Straddle Mount	Non Specified - Dual Edge	Copper Alloy	50	Gold	Cantilever	2	100	Card Extender	Solder	0.1 "	2.54 mm	Female	0.25 Ám	10 Áin	Dual	Side Mount Opening Unthreaded	3.25 mm	0.128 "

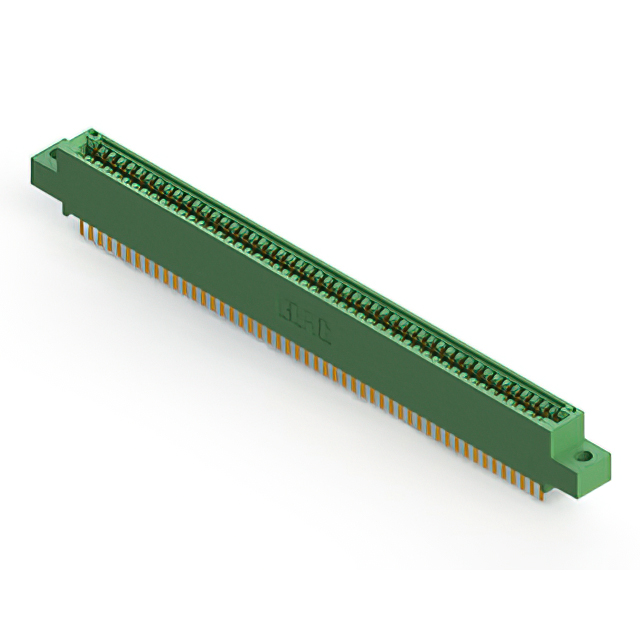

EDAC Inc. 845-100-520-504	2	Diallyl Phthalate (DAP)	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Through Hole	Non Specified - Dual Edge	Copper Alloy	50	Gold	Cantilever	2	100		Solder	0.1 "	2.54 mm	Female	0.25 Ám	10 Áin	Dual		3.96 mm	0.156 "
EDAC Inc. 845-100-540-207	2	Diallyl Phthalate (DAP)	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Through Hole	Non Specified - Dual Edge	Copper Alloy	50	Gold	Cantilever	2	100		Wire Wrap	0.1 "	2.54 mm	Female	0.25 Ám	10 Áin	Dual	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 845-100-540-508	2	Diallyl Phthalate (DAP)	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Through Hole	Non Specified - Dual Edge	Copper Alloy	50	Gold	Cantilever	2	100		Wire Wrap	0.1 "	2.54 mm	Female	0.25 Ám	10 Áin	Dual	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-100-541-507	2	Diallyl Phthalate (DAP)	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Through Hole	Non Specified - Dual Edge	Copper Alloy	50	Gold	Cantilever	2	100		Wire Wrap	0.1 "	2.54 mm	Female	0.25 Ám	10 Áin	Dual	M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-100-559-502	2	Diallyl Phthalate (DAP)	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Right Angle Through Hole	Non Specified - Dual Edge	Copper Alloy	50	Gold	Cantilever	2	100		Solder	0.1 "	2.54 mm	Female	0.25 Ám	10 Áin	Dual		3.25 mm	0.128 "

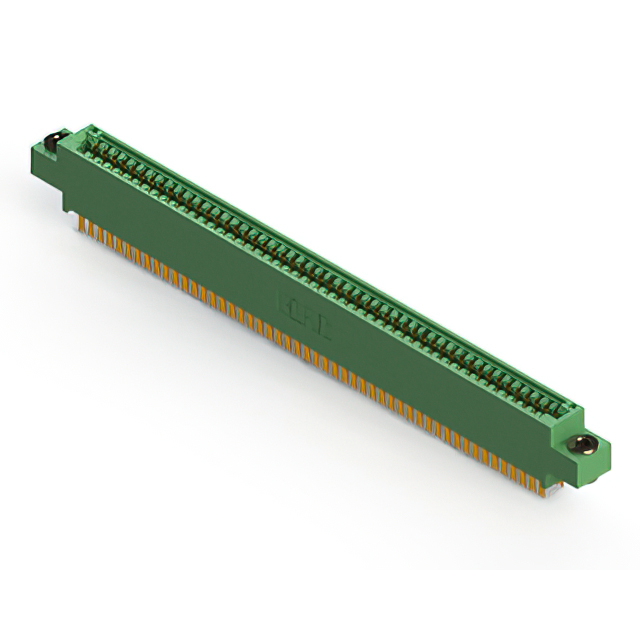

EDAC Inc. 845-100-500-803	2	Diallyl Phthalate (DAP)	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Through Hole	Non Specified - Dual Edge	Copper Alloy	50	Gold	Cantilever	2	100		Solder Eyelet(s)	0.1 "	2.54 mm	Female	0.25 Ám	10 Áin	Dual	Floating Bobbin Top Mount Opening	2.95 mm	0.116 "
