M13199 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

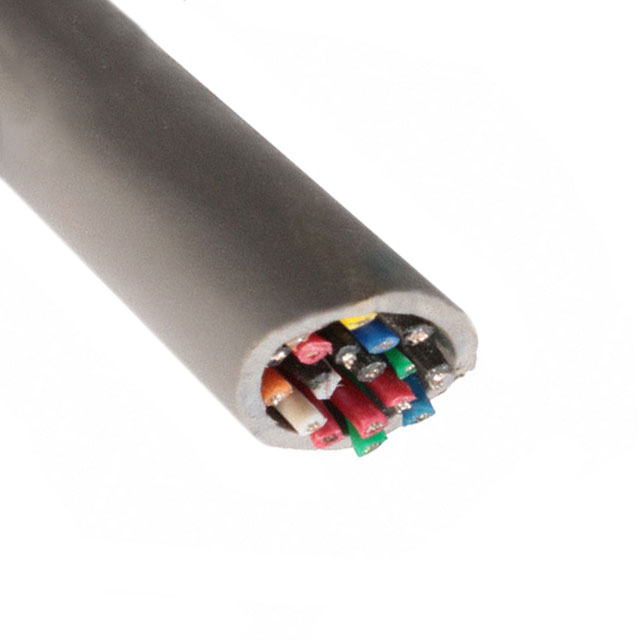

MULTI-PAIR 20COND 24AWG 100'
| Part | Shield Material | Shield Coverage | Shield Type | Voltage | Wire Gauge | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket Color | Features | Length [x] | Length [x] | Conductor Insulation | Number of Conductors | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Foil | 300 VDC | 24 AWG | UL Style 2464 | 80 °C | -20 ░C | 9.14 mm | 0.36 in | Multi-Pair | 0.813 mm | 0.032 in | Copper Tinned | Slate | Drain Wire Rip Cord | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | 20 | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG |
