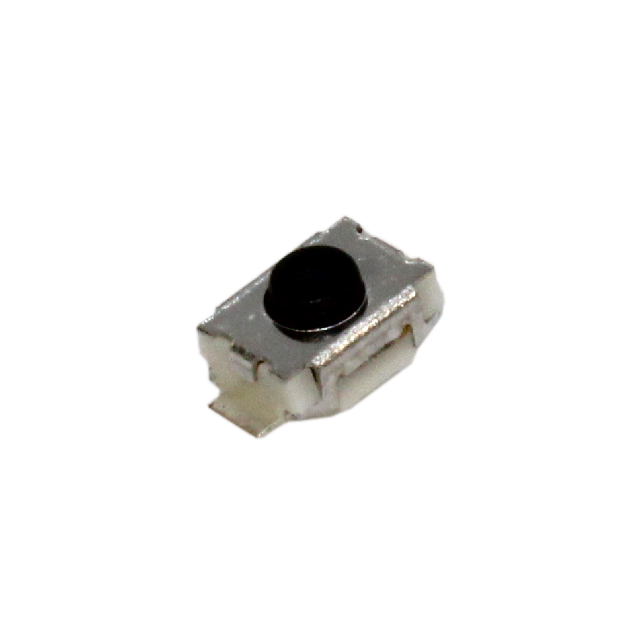

CS1213B Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Mounting Type	Actuator Orientation	Operating Force	Circuit	Actuator Type	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Illumination	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Termination Style
CIT Relay and Switch CS1213BGF260	Polyamide (PA46) Nylon 4/6	1.5 mm	Surface Mount	Top Actuated	260 gf	SPST-NO	Standard	0.05 A 50 VDC	85 °C	-40 C	Off-Mom	Non-Illuminated	2 mm	2.9 mm	3.9 mm	Gull Wing
CIT Relay and Switch CS1213BGF160	Polyamide (PA46) Nylon 4/6	1.5 mm	Surface Mount	Top Actuated	160 gf	SPST-NO	Standard	0.05 A 50 VDC	85 °C	-40 C	Off-Mom	Non-Illuminated	2 mm	2.9 mm	3.9 mm	Gull Wing
CIT Relay and Switch CS1213BJF160	Polyamide (PA46) Nylon 4/6	1.5 mm	Surface Mount	Top Actuated	160 gf	SPST-NO	Standard	0.05 A 50 VDC	85 °C	-40 C	Off-Mom	Non-Illuminated	2 mm	2.9 mm	3.9 mm	J Lead
