TB2-2D Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH TOGGLE DPDT 20A 12V
| Part | Electrical Life (Cycles) | Illumination | Bushing Thread Pitch | Bushing Thread | Bushing Thread Diameter | Voltage Rating - DC | Actuator Length | Panel Cutout Diameter | Panel Cutout Shape | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Current Rating | Quick Connect Size (0.250") | Termination Style | Actuator Type | Switch Function | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

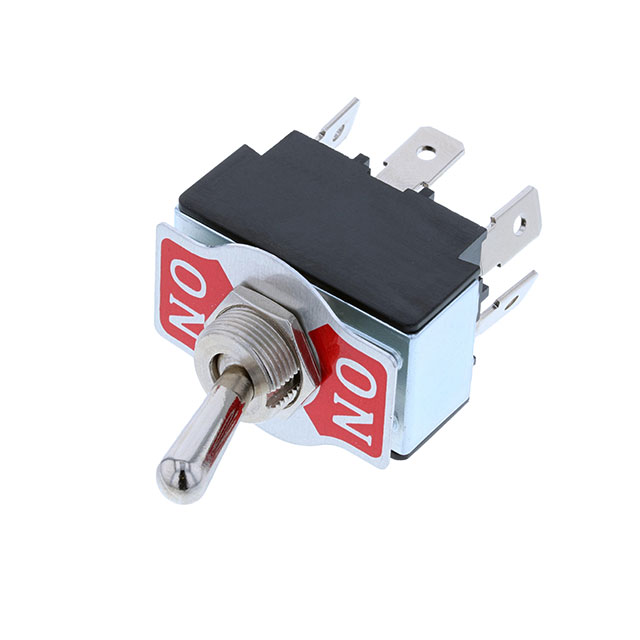

 Switch Components | 6000 Cycles | Non-Illuminated | 0.75 mm | M12 x 0.75 | 12 mm | 12 V | 17.7 mm | 12.2 mm | Circular | Panel Mount | 0 °C | 55 °C | 20 A | 0.25 in | Quick Connect | Standard Round | On-On | DPDT |

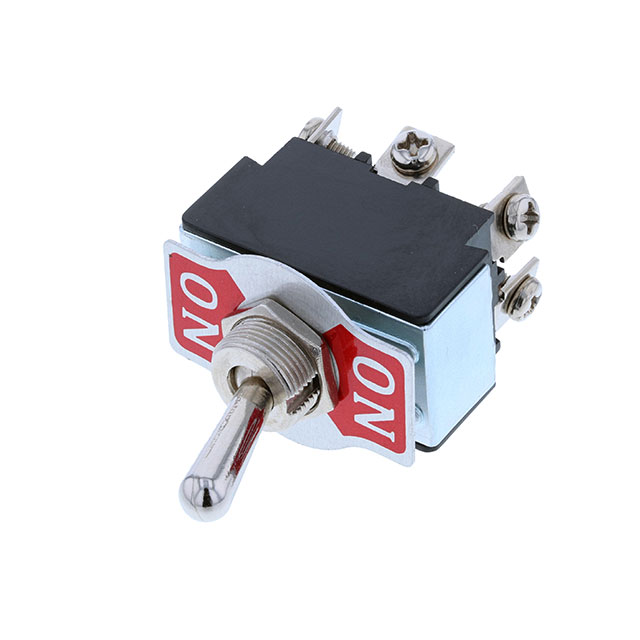

 Switch Components | 6000 Cycles | Non-Illuminated | 0.75 mm | M12 x 0.75 | 12 mm | 12 V | 17.7 mm | 12.2 mm | Circular | Panel Mount | 0 °C | 55 °C | 20 A | Screw Terminal | Standard Round | On-On | DPDT |
