151117 Series

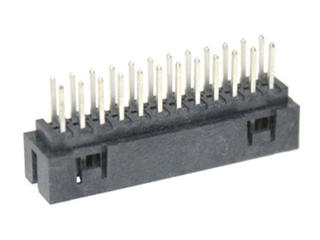

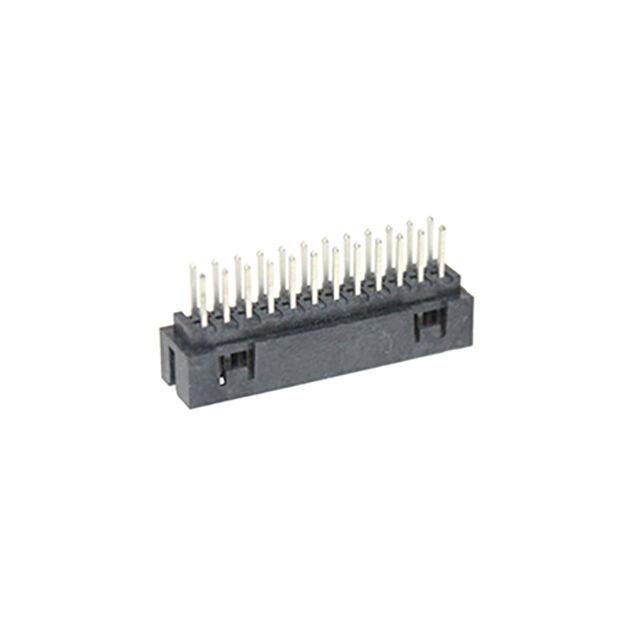

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Through Hole, 2.00µm Tin (Sn) Plating, with Peg, 2.60mm PC Tail Length, with Pick and Place Cap, 16 Circuits, Glow-Wire Capable, Tube

Manufacturer: Molex

Catalog

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Through Hole, 2.00µm Tin (Sn) Plating, with Peg, 2.60mm PC Tail Length, with Pick and Place Cap, 16 Circuits, Glow-Wire Capable, Tube

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Style	Connector Type	Insulation Height [z]	Insulation Height [z]	Shrouding	Insulation Color	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Number of Positions	Contact Type	Contact Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)	Features	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Fastening Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Material	Number of Positions
Molex 1511175778	0.079 in	2 mm	0.142 in	3.6 mm	2 çm	78.7 çin	Through Hole	Board to Board Cable	Header	6.4 mm	0.252 in	Shrouded - 4 Wall	Black	All	0.079 in	2 mm	Tin	78	Male Pin	Copper Alloy	125 VDC	29.5 Áin	0.75 Ám	Gold	2 A	Glow Wire Compliant Pick and Place	Square	0.181 in	4.6 mm	2	105 ░C	-55 °C	Solder	Detent Lock	UL94 V-0
Molex 1511173208	0.079 in	2 mm	0.142 in	3.61 mm	2 çm	78.7 çin	Through Hole	Board to Board Cable	Header	6.4 mm	0.252 in	Shrouded - 4 Wall	Black	All	0.079 in	2 mm	Tin	8	Male Pin	Copper Alloy	125 VAC	15 µin	0.38 µm	Gold	2 A	Glow Wire Compliant	Square			2	105 ░C	-55 °C	Solder	Detent Lock	UL94 V-0	0.102 in	2.6 mm
Molex 1511174408	0.079 in	2 mm	0.142 in	3.6 mm	2 çm	78.7 çin	Through Hole	Board to Board Cable	Header	6.4 mm	0.252 in	Shrouded - 4 Wall	Black	All	0.079 in	2 mm	Tin	8	Male Pin	Copper Alloy	125 VDC	78.7 µin	2 µm		2 A		Square			2	105 ░C	-55 °C	Solder	Latch Holder	UL94 V-0	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)
Molex 1511173216	0.079 in	2 mm	0.142 in	3.6 mm	1 çm	39.4 çin	Through Hole	Board to Board Cable	Header	6.4 mm	0.252 in	Shrouded - 4 Wall	Black	All	0.079 in	2 mm	Gold		Male Pin	Copper Alloy	125 VDC	15 µin	0.38 µm	Gold	2 A	Glow Wire Compliant Pick and Place	Square			2	105 ░C	-55 °C	Solder	Detent Lock	UL94 V-0	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)	16
Molex 1511175634	0.079 in	2 mm	0.142 in	3.6 mm	2 çm	78.7 çin	Through Hole	Board to Board Cable	Header	6.4 mm	0.252 in	Shrouded - 4 Wall	Black	All	0.079 in	2 mm	Tin	34	Male Pin	Copper Alloy	125 VDC	15 µin	0.38 µm	Gold	2 A	Glow Wire Compliant Pick and Place	Square	0.181 in	4.6 mm	2	105 ░C	-55 °C	Solder	Detent Lock	UL94 V-0
Molex 1511174416	0.079 in	2 mm	0.142 in	3.6 mm	1 çm	39.4 çin	Through Hole	Board to Board Cable	Header	6.4 mm	0.252 in	Shrouded - 4 Wall	Black	All	0.079 in	2 mm	Gold		Male Pin	Copper Alloy	125 VDC	78.7 µin	2 µm		2 A	Glow Wire Compliant Pick and Place	Square			2	105 ░C	-55 °C	Solder	Detent Lock	UL94 V-0	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)	16
Molex 1511174708	0.079 in	2 mm	0.142 in	3.6 mm	1 çm	39.4 çin	Through Hole	Board to Board Cable	Header	6.4 mm	0.252 in	Shrouded - 4 Wall	Black	All	0.079 in	2 mm	Gold	8	Male Pin	Copper Alloy	125 VDC	29.5 Áin	0.75 Ám	Gold	2 A	Glow Wire Compliant Pick and Place	Square			2	105 ░C	-55 °C	Solder	Detent Lock	UL94 V-0	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)
Molex 1511173014
Molex 1511173010	0.079 in	2 mm					Through Hole	Board to Cable/Wire	Header			Shrouded - 4 Wall	Black	All	0.079 in	2 mm	Tin	10	Male Pin	Copper Alloy	125 VAC				2 A		Square			2	105 ░C	-55 °C	Solder	Detent Lock	UL94 V-0	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)
Molex 1511173404	0.079 in	2 mm	0.142 in	3.61 mm	2 çm	78.7 çin	Through Hole	Board to Board Cable	Header	6.4 mm	0.252 in	Shrouded - 4 Wall	Black	All	0.079 in	2 mm	Tin	4	Male Pin	Copper Alloy	125 VAC	78.7 µin	2 µm		2 A	Glow Wire Compliant Pick and Place	Square			2	105 ░C	-55 °C	Solder	Detent Lock	UL94 V-0	0.102 in	2.6 mm
