82248 Series
Manufacturer: Belden Inc.
Beta
⌘K

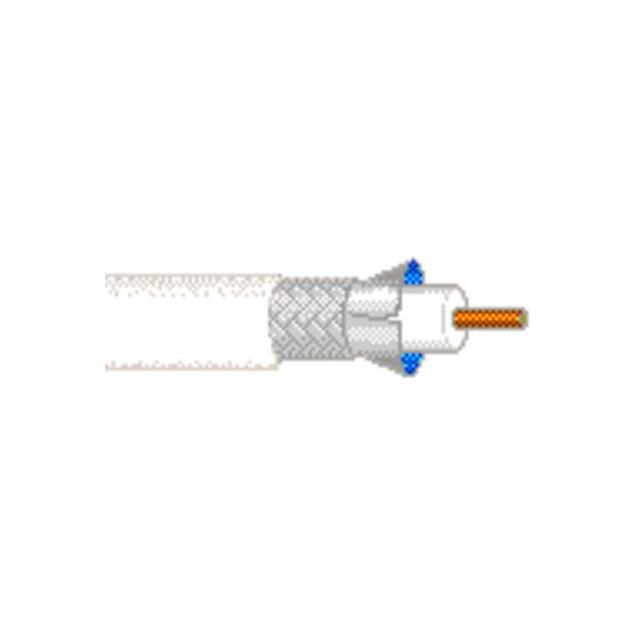

#18 FFEP RG6/U FLMRST
| Part | Shield Coverage | Shield Material | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Dielectric Material | Jacket (Insulation) Diameter [diameter] | Impedance | Jacket Color | Conductor Strand | Cable Type | Cable Group | Usage | Jacket (Insulation) Material | Shield Type | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Polyester Copper Tinned | 82 | 4.32 mm | 0.17 in | Copper Bare | Fluorinated Ethylene-Propylene (FEP) | 0.222 in 5.64 mm | 75 Ohms | Natural | Solid | Coaxial - Plenum | RG-6 | Video | Poly-Vinyl Chloride (PVC) | Braid Foil | 18 AWG | 304.8 m | 1000 ft |
