Maxi-Con-X Series

Catalog

STANDARD CIRCULAR CONNECTOR MAXI-CON CBL-CBL #16 CRIMP

Part	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Orientation	Backshell Material, Plating	Voltage Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Termination	Contact Material	Number of Positions	Connector Type	Primary Material	Ingress Protection	Contact Finish - Mating	Fastening Type	Features	Color	Mounting Feature	Cable Opening [Max]	Material	Accessory Type

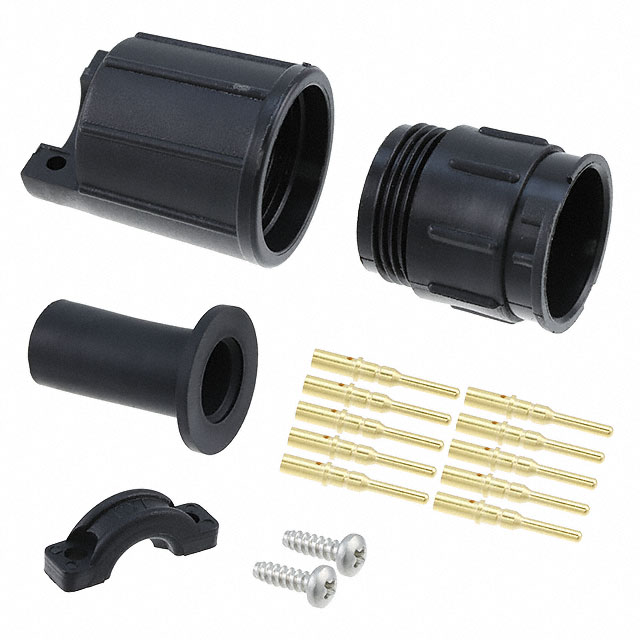

SWITCHCRAFT/CONXALL 15380-10PG-331	9.65 mm	0.38 in	0.31 "	7.87 mm	Keyed	Nylon Polyamide (PA)	600 V	Free Hanging (In-Line)	115 °C	-40 C	Unshielded	Crimp	Brass	10	Receptacle Male Pins	Plastic	Weathertight	Gold	Bayonet Lock	Backshell Cable Clamp	Black
SWITCHCRAFT/CONXALL 14280-18PGT-300					Keyed		600 V	Panel Mount	115 °C	-40 C	Unshielded	Crimp	Brass	18	Receptacle Male Pins	Plastic	Weathertight	Gold	Threaded		Black	Bulkhead - Front Side Nut Flange
SWITCHCRAFT/CONXALL 13380-10SG-331	9.65 mm	0.38 in	0.31 "	7.87 mm	Keyed	Nylon Polyamide (PA)	600 V	Free Hanging (In-Line)	115 °C	-40 C	Unshielded	Crimp	Brass	10	Plug Female Sockets	Plastic	Weathertight	Gold	Bayonet Lock	Backshell Cable Clamp	Black
SWITCHCRAFT/CONXALL 15180-7PG-331	9.65 mm	0.38 in	0.31 "	7.87 mm	Keyed	Nylon Polyamide (PA)	600 V	Free Hanging (In-Line)	115 °C	-40 C	Unshielded	Crimp	Brass	7	Receptacle Male Pins	Plastic	Weathertight	Gold	Bayonet Lock	Backshell Cable Clamp	Black
SWITCHCRAFT/CONXALL 13380-10PG-321		0.25 in	0.21 in	5.33 mm	Keyed	Nylon Polyamide (PA)	600 V	Free Hanging (In-Line)	115 °C	-40 C	Unshielded	Crimp	Brass	10	Plug Male Pins	Plastic	Weathertight	Gold	Bayonet Lock	Backshell Cable Clamp	Black		6.35 mm
SWITCHCRAFT/CONXALL 4296																				Square	Black			Nylon	Flange Adapter
SWITCHCRAFT/CONXALL 15380-12PG-326	7.62 mm	0.3 "	0.26 "	6.6 mm	Keyed	Nylon Polyamide (PA)	600 V	Free Hanging (In-Line)	115 °C	-40 C	Unshielded	Crimp	Brass	12	Receptacle Male Pins	Plastic	Weathertight	Gold	Bayonet Lock	Backshell Cable Clamp	Black
SWITCHCRAFT/CONXALL 13380-10SG-321		0.25 in	0.21 in	5.33 mm	Keyed	Nylon Polyamide (PA)	600 V	Free Hanging (In-Line)	115 °C	-40 C	Unshielded	Crimp	Brass	10	Plug Female Sockets	Plastic	Weathertight	Gold	Bayonet Lock	Backshell Cable Clamp	Black		6.35 mm
SWITCHCRAFT/CONXALL 15180-7SG-321		0.25 in	0.21 in	5.33 mm	Keyed	Nylon Polyamide (PA)	600 V	Free Hanging (In-Line)	115 °C	-40 C	Unshielded	Crimp	Brass	7	Receptacle Female Sockets	Plastic	Weathertight	Gold	Bayonet Lock	Backshell Cable Clamp	Black		6.35 mm
SWITCHCRAFT/CONXALL 15280-18SG-321		0.25 in	0.21 in	5.33 mm	Keyed	Nylon Polyamide (PA)	600 V	Free Hanging (In-Line)	115 °C	-40 C	Unshielded	Crimp	Brass	18	Receptacle Female Sockets	Plastic	Weathertight	Gold	Bayonet Lock	Backshell Cable Clamp	Black		6.35 mm
