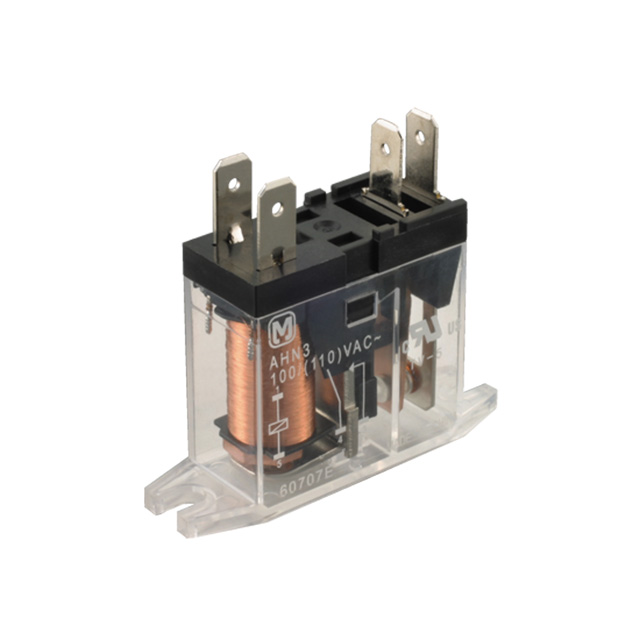

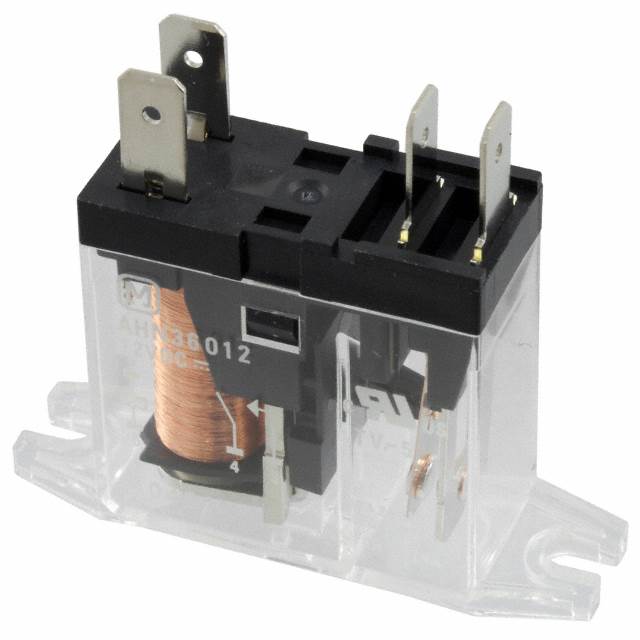

AHN360 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 24V
| Part | Coil Resistance | Contact Form | Operate Time | Relay Type | Termination Style | Release Time | Coil Type | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Switching Voltage [Max] | Contact Rating (Current) | Load - Max Switching | Coil Current | Mounting Type | Approval Agency | Coil Voltage | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 1.09 kOhms | SPST-NO (1 Form A) | 15 ms | General Purpose | Quick Connect | 5 ms | Non Latching | 2.4 VDC | 70 °C | -40 C | Silver Tin Oxide (AgSnO) | 30 VDC 250 VAC | 16 A | 480 W 4000 VA | 22 mA | Chassis Mount | cURus VDE | 24 VDC | 16.8 VDC |
Panasonic Electronic Components | 47 Ohms | SPST-NO (1 Form A) | 15 ms | General Purpose | Quick Connect | 5 ms | Non Latching | 0.5 VDC | 70 °C | -40 C | Silver Tin Oxide (AgSnO) | 30 VDC 250 VAC | 16 A | 480 W 4000 VA | 106.4 mA | Chassis Mount | cURus VDE | 5 VDC | 3.5 VDC |
 Panasonic Electronic Components | 270 Ohms | SPST-NO (1 Form A) | 15 ms | General Purpose | Quick Connect | 5 ms | Non Latching | 1.2 VDC | 70 °C | -40 C | Silver Tin Oxide (AgSnO) | 30 VDC 250 VAC | 16 A | 480 W 4000 VA | 44.4 mA | Chassis Mount | cURus VDE | 12 VDC | 8.4 VDC |
