7565B Series

Catalog

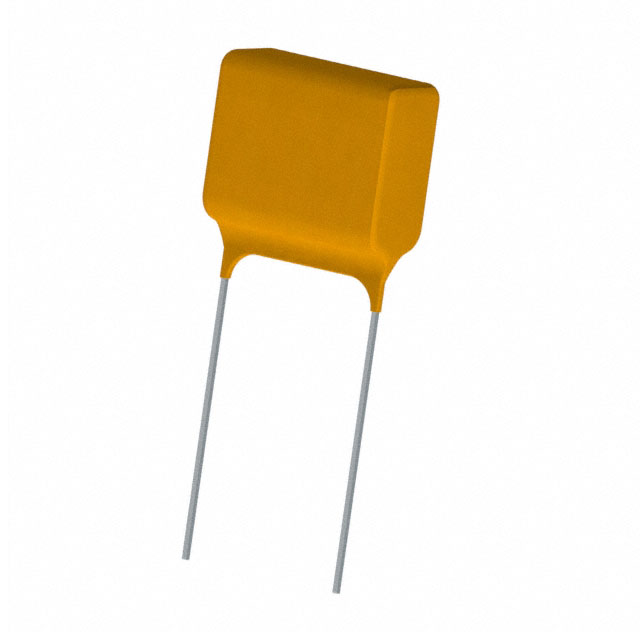

CAP CER 0.022UF 6KV X7R RAD

Part	Voltage - Rated	Voltage - Rated	Lead Style	Package / Case	Mounting Type	Capacitance	Tolerance	Features	Applications	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Knowles Syfer 7565B223K602LE	6000 V	6 kV	Straight	Radial	Through Hole	0.022 µF	10 %	High Voltage	General Purpose	19.8 mm	0.78 "	-55 C	125 °C	10.2 mm	0.9 in	0.402 in	22.86 mm	X7R	24.76 mm	0.975 in
Knowles Syfer 7565B223K802LE	8 kV	8 kV	Straight	Radial	Through Hole	0.022 µF	10 %	High Voltage	General Purpose	19.8 mm	0.78 "	-55 C	125 °C	10.2 mm	0.9 in	0.402 in	22.86 mm	X7R	24.76 mm	0.975 in
Knowles Syfer 7565B472K103LE	10 kV	10 kV	Straight	Radial	Through Hole	0.0047 µF	10 %	High Voltage	General Purpose	19.8 mm	0.78 "	-55 C	125 °C	10.2 mm	0.9 in	0.402 in	22.86 mm	X7R	24.76 mm	0.975 in
Knowles Syfer 7565B333K602LE	6000 V	6 kV	Straight	Radial	Through Hole	0.033 çF	10 %	High Voltage	General Purpose	19.8 mm	0.78 "	-55 C	125 °C	10.2 mm	0.9 in	0.402 in	22.86 mm	X7R	24.76 mm	0.975 in
