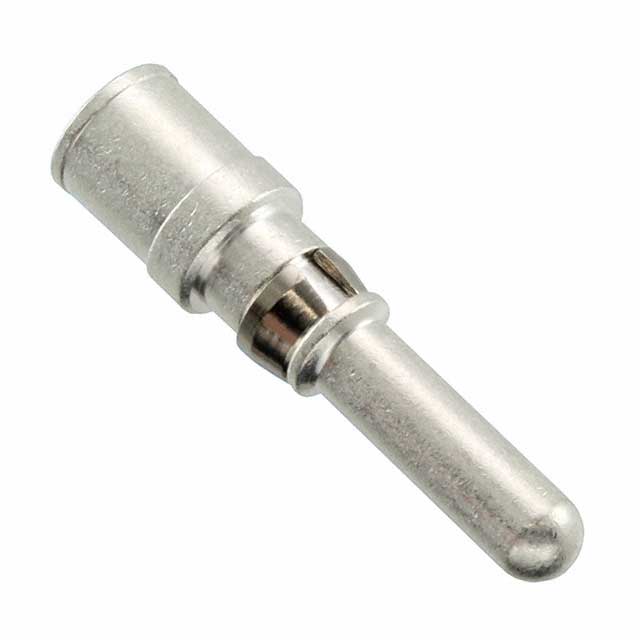

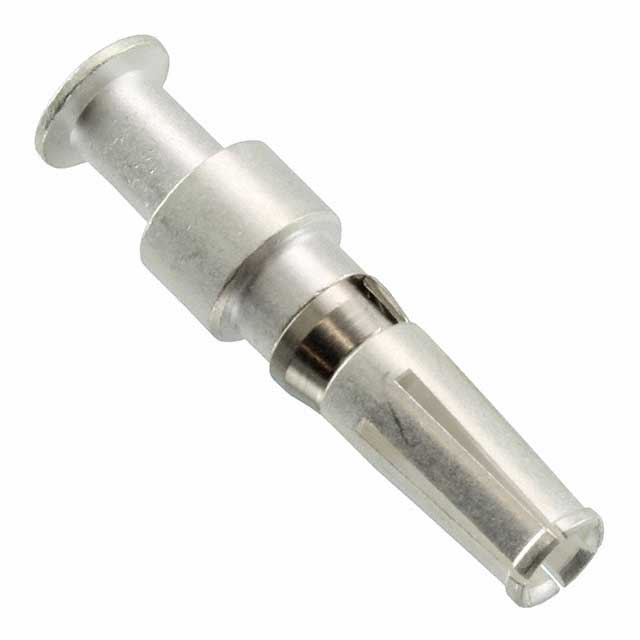

829136 Series

Catalog

CONTACT PIN 16AWG CRIMP SILVER

Part	Contact Size	Contact Finish	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG	Contact Material	Contact Type	Wire Gauge or Range - mm²	Contact Finish Thickness	Type	Contact Termination

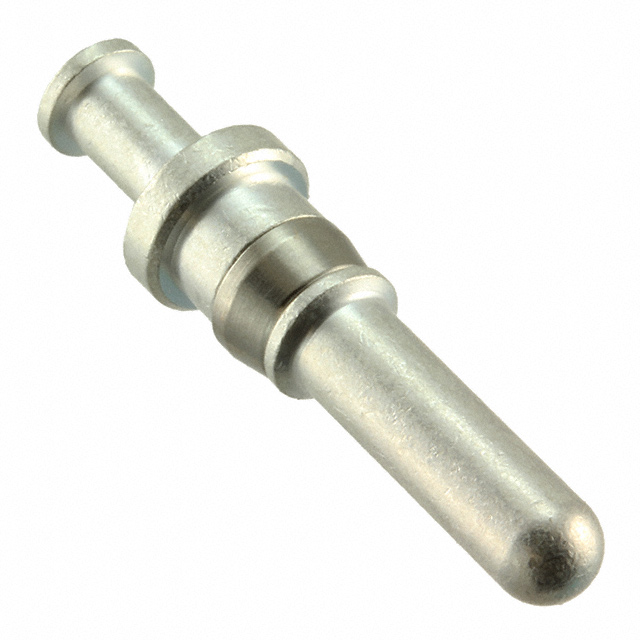

Amphenol Aerospace Operations 82913601A	8	Silver	16 AWG	16 AWG	Copper Alloy	Pin	1.5 mm²	78.7 µin	Machined Power	Crimp
Amphenol Aerospace Operations 82913608A	8	Silver	8 AWG	8 AWG	Copper Alloy	Socket	10 mm²	78.7 µin	Machined Power	Crimp
Amphenol Aerospace Operations 82913602A	8	Silver	14 AWG	14 AWG	Copper Alloy	Socket	2.5 mm²	78.7 µin	Machined Power	Crimp
Amphenol Aerospace Operations 82913603A	8	Silver	14 AWG	14 AWG	Copper Alloy	Pin	2.5 mm²	78.7 µin	Machined Power	Crimp
Amphenol Aerospace Operations 82913604A	8	Silver	12 AWG	12 AWG	Copper Alloy	Socket	4 mm²	78.7 µin	Machined Power	Crimp
Amphenol Aerospace Operations 82913606A	8	Silver	10 AWG	10 AWG	Copper Alloy	Socket	6 mm²	78.7 µin	Machined Power	Crimp
Amphenol Aerospace Operations 82913607A	8	Silver	10 AWG	10 AWG	Copper Alloy	Pin	6 mm²	78.7 µin	Machined Power	Crimp
Amphenol Aerospace Operations 82913605A	8	Silver	12 AWG	12 AWG	Copper Alloy	Pin	4 mm²	78.7 µin	Machined Power	Crimp
Amphenol Aerospace Operations 82913600A	8	Silver	16 AWG	16 AWG	Copper Alloy	Socket	1.5 mm²	78.7 µin	Machined Power	Crimp
