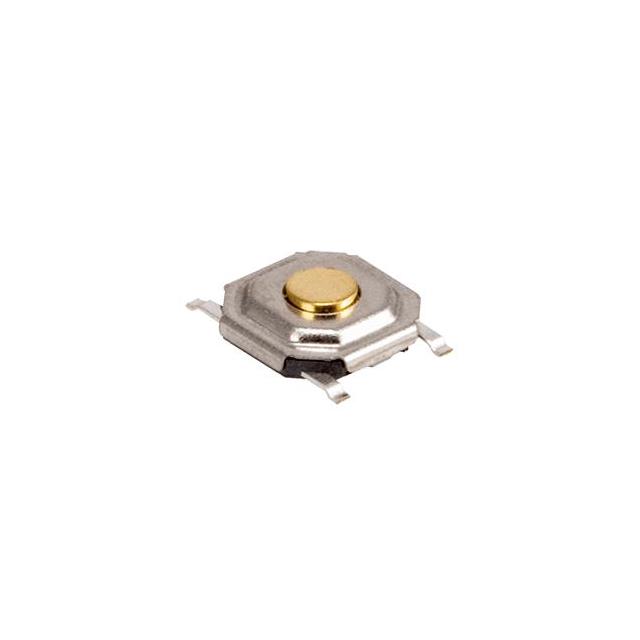

ts18 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 1.6N

Part	Mounting Type	Actuator Material	Illumination	Mechanical Life	Actuator Type	Switch Travel	Actuator Height off PCB, Vertical [z]	Circuit	Actuator Orientation	Outline [x]	Outline [y]	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Termination Style	Switch Function	Actuator Height off PCB, Vertical
Same Sky (Formerly CUI Devices) TS18-5-20-SL-160-SMT-TR	Surface Mount	Brass Nickel Plated	Non-Illuminated	80000 Cycles	Standard	0.2 mm	2 mm	SPST-NO	Top Actuated	5.2 mm	5.2 mm	160 gf	80 °C	-30 ░C	0.05 A 12 VDC	Gull Wing	Off-Mom
Same Sky (Formerly CUI Devices) TS18-5-17-SL-160-SMT-TR	Surface Mount	Brass Nickel Plated	Non-Illuminated	80000 Cycles	Standard	0.2 mm		SPST-NO	Top Actuated	5.2 mm	5.2 mm	160 gf	80 °C	-30 ░C	0.05 A 12 VDC	Gull Wing	Off-Mom	1.7 mm
Same Sky (Formerly CUI Devices) TS18-5-15-SL-160-SMT-TR	Surface Mount	Brass Nickel Plated	Non-Illuminated	80000 Cycles	Standard	0.2 mm	1.5 mm	SPST-NO	Top Actuated	5.2 mm	5.2 mm	160 gf	80 °C	-30 ░C	0.05 A 12 VDC	Gull Wing	Off-Mom
Same Sky (Formerly CUI Devices) TS18-5-17-SL-160-SMT-TR	Surface Mount		Non-Illuminated		Standard			SPST-NO	Top Actuated	5.2 mm	5.2 mm	160 gf	80 °C	-30 ░C	0.05 A 12 VDC	Gull Wing	Off-Mom	1.7 mm
Same Sky (Formerly CUI Devices) TS18-5-17-SL-260-SMT-TR	Surface Mount		Non-Illuminated		Standard			SPST-NO	Top Actuated	5.2 mm	5.2 mm	260 gf	80 °C	-30 ░C	0.05 A 12 VDC	Gull Wing	Off-Mom	1.7 mm
Same Sky (Formerly CUI Devices) TS18-5-17-SL-260-SMT-TR	Surface Mount	Brass Nickel Plated	Non-Illuminated	60000 Cycles	Standard	0.2 mm		SPST-NO	Top Actuated	5.2 mm	5.2 mm	260 gf	80 °C	-30 ░C	0.05 A 12 VDC	Gull Wing	Off-Mom	1.7 mm
Same Sky (Formerly CUI Devices) TS18-5-25-SL-160-SMT-TR	Surface Mount		Non-Illuminated		Standard		2.5 mm	SPST-NO	Top Actuated	5.2 mm	5.2 mm	160 gf	80 °C	-30 ░C	0.05 A 12 VDC	Gull Wing	Off-Mom
Same Sky (Formerly CUI Devices) TS18-5-15-SL-160-SMT-TR	Surface Mount		Non-Illuminated		Standard		1.5 mm	SPST-NO	Top Actuated	5.2 mm	5.2 mm	160 gf	80 °C	-30 ░C	0.05 A 12 VDC	Gull Wing	Off-Mom
Same Sky (Formerly CUI Devices) TS18-5-25-SL-260-SMT-TR	Surface Mount	Brass Nickel Plated	Non-Illuminated	60000 Cycles	Standard	0.2 mm	2.5 mm	SPST-NO	Top Actuated	5.2 mm	5.2 mm	260 gf	80 °C	-30 ░C	0.05 A 12 VDC	Gull Wing	Off-Mom
Same Sky (Formerly CUI Devices) TS18-5-25-SL-160-SMT-TR	Surface Mount	Brass Nickel Plated	Non-Illuminated	80000 Cycles	Standard	0.2 mm	2.5 mm	SPST-NO	Top Actuated	5.2 mm	5.2 mm	160 gf	80 °C	-30 ░C	0.05 A 12 VDC	Gull Wing	Off-Mom
