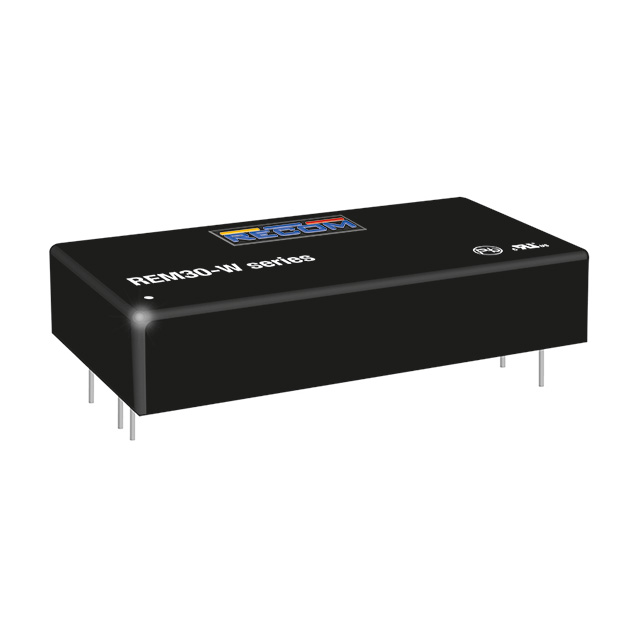

REM30-W Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 4:1, 30 W, 2 OUTPUT, 5 V

Part	Features	Package / Case	Size / Dimension	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Voltage - Input (Max) [Max]	Voltage - Output 1	Applications	Efficiency	Number of Outputs	Type	Voltage - Output 2	Voltage - Isolation	Voltage - Input (Min) [Min]	Power (Watts)	Current - Output (Max) [Max]
Recom Power REM30-2405DW/P	OCP OTP OVP Remote On/Off SCP UVLO	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	105 C	-40 °C	3 A	36 V	5 V	ITE (Commercial) Medical	86 %	2	Isolated Module	-5 V	5000 V	9 V	30 Watts
Recom Power REM30-2405SW	OCP OTP OVP SCP UVLO	6-DIP Module 5 Leads	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	105 C	-40 °C		36 V	5 V	ITE (Commercial) Medical	88 %	1	Isolated Module		5000 V	9 V	30 Watts	6 A
Recom Power REM30-2405DW	OCP OTP OVP SCP UVLO	6-DIP Module 5 Leads	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	105 C	-40 °C	3 A	36 V	5 V	ITE (Commercial) Medical	86 %	2	Isolated Module	-5 V	5000 V	9 V	30 Watts
Recom Power REM30-4805DW/P	OCP OTP OVP Remote On/Off SCP UVLO	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	105 C	-40 °C	3 A	75 V	5 V	ITE (Commercial) Medical	86.5 %	2	Isolated Module	-5 V	5000 V	18 V	30 Watts
Recom Power REM30-2415DW	OCP OTP OVP SCP UVLO	6-DIP Module 5 Leads	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	105 C	-40 °C	1 A	36 V	15 V	ITE (Commercial) Medical	89 %	2	Isolated Module	-15 V	5000 V	9 V	30 Watts
Recom Power REM30-2415DW/P	OCP OTP OVP Remote On/Off SCP UVLO	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	105 C	-40 °C	1 A	36 V	15 V	ITE (Commercial) Medical	89 %	2	Isolated Module	-15 V	5000 V	9 V	30 Watts
Recom Power REM30-4805DW	OCP OTP OVP SCP UVLO	6-DIP Module 5 Leads	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	105 C	-40 °C	3 A	75 V	5 V	ITE (Commercial) Medical	86.5 %	2	Isolated Module	-5 V	5000 V	18 V	30 Watts
Recom Power REM30-4805SW/P	OCP OTP OVP Remote On/Off SCP UVLO	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	105 C	-40 °C		75 V	5 V	ITE (Commercial) Medical	89 %	1	Isolated Module		5000 V	18 V	30 Watts	6 A
Recom Power REM30-2412SW/P	OCP OTP OVP Remote On/Off SCP UVLO	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	105 C	-40 °C		36 V	12 V	ITE (Commercial) Medical	89 %	1	Isolated Module		5000 V	9 V	30 Watts	2.5 A
Recom Power REM30-2412DW	OCP OTP OVP SCP UVLO	6-DIP Module 5 Leads	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	105 C	-40 °C	1.25 A	36 V	12 V	ITE (Commercial) Medical	89 %	2	Isolated Module	-12 V	5000 V	9 V	30 Watts
