Schaffner FN3021 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
S IND 3PH FILTERS
| Part | Current | Filter Type | Configuration | Termination Style | Approval Agency | Mounting Type | Applications | Frequency - Operating | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated AC (Phase to Phase) | Voltage - Rated AC (Phase to Ground/Neutral) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 150 A | Three Phase (Wye) | Two Stage | Terminal Block | CE ENEC UKCA UR | Chassis Mount | Inverters Power Drive Systems | 60 Hz | 100 °C | -25 °C | 520 V | 300 V |

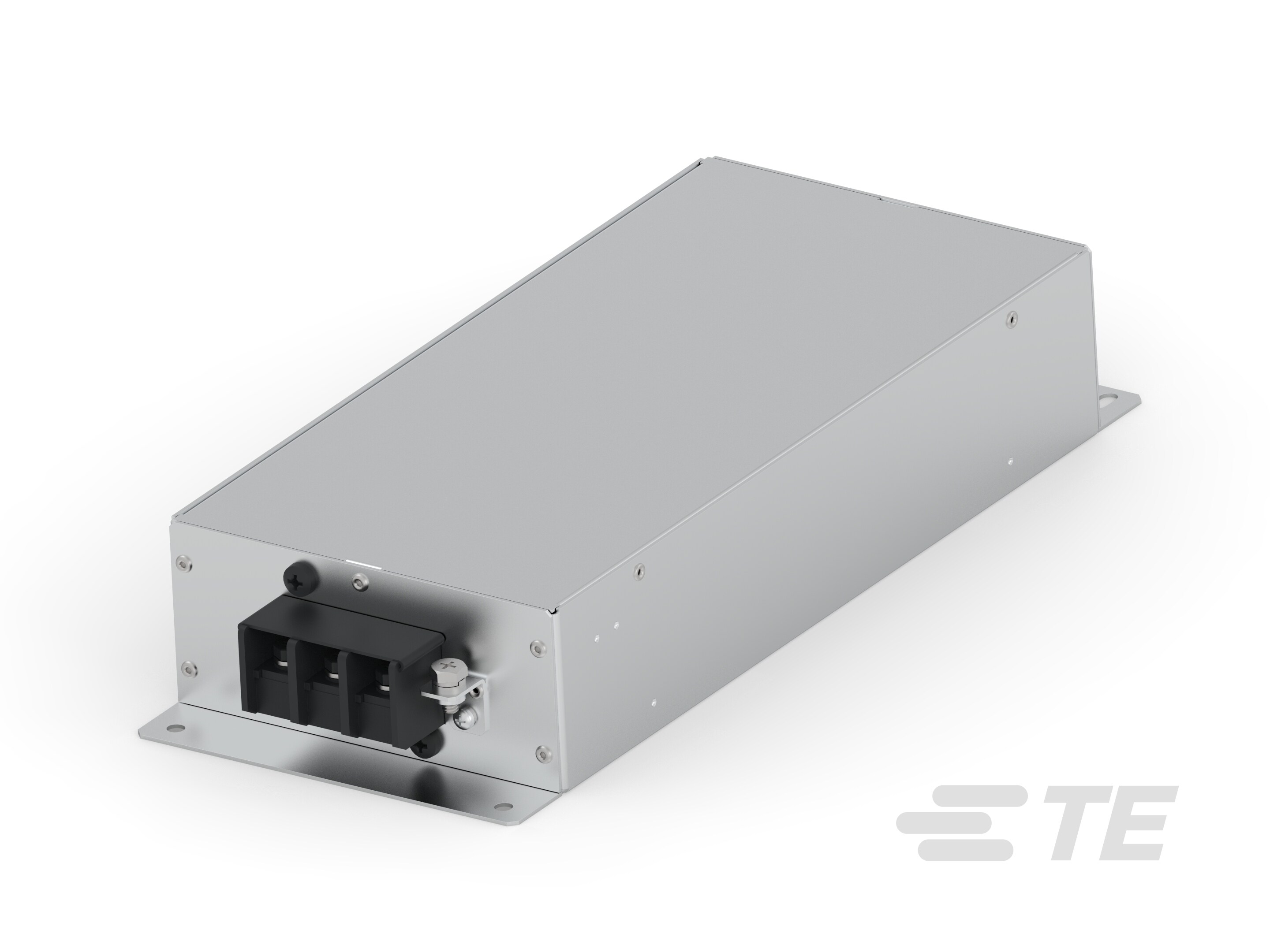

 TE Connectivity AMP Connectors | 50 A | Three Phase (Wye) | Two Stage | Terminal Block | CE ENEC UKCA UR | Chassis Mount | Inverters Power Drive Systems | 60 Hz | 100 °C | -25 °C | 520 V | 300 V |
TE Connectivity AMP Connectors | 100 A | Three Phase (Wye) | Two Stage | Terminal Block | CE ENEC UKCA UR | Chassis Mount | Inverters Power Drive Systems | 60 Hz | 100 °C | -25 °C | 520 V | 300 V |

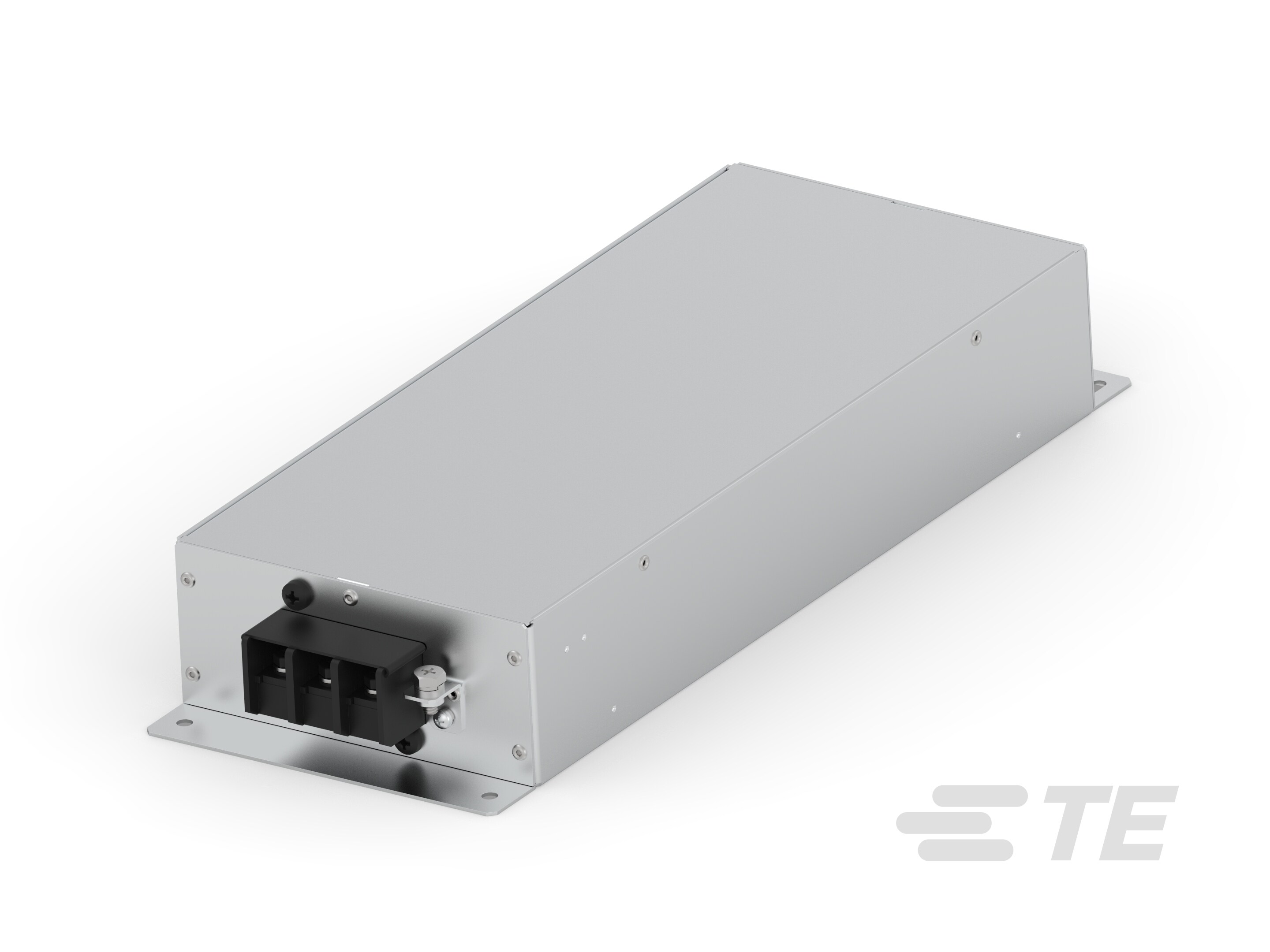

 TE Connectivity AMP Connectors | 80 A | Three Phase (Wye) | Two Stage | Terminal Block | CE ENEC UKCA UR | Chassis Mount | Inverters Power Drive Systems | 60 Hz | 100 °C | -25 °C | 520 V | 300 V |
