842-055 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 55POS 0.100

Part	Color	Contact Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Termination Rows	Pitch	Pitch	Number of Positions/Bay/Row	Gender	Card Thickness [Max]	Card Thickness [Min]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Read Out	Card Type	Contact Type	Number of Rows
EDAC Inc. 842-055-540-112	Green	Copper Alloy	55	125 °C	-40 C	Wire Wrap	Through Hole	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Gold	1	0.1 "	2.54 mm	55	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	Cantilever	1

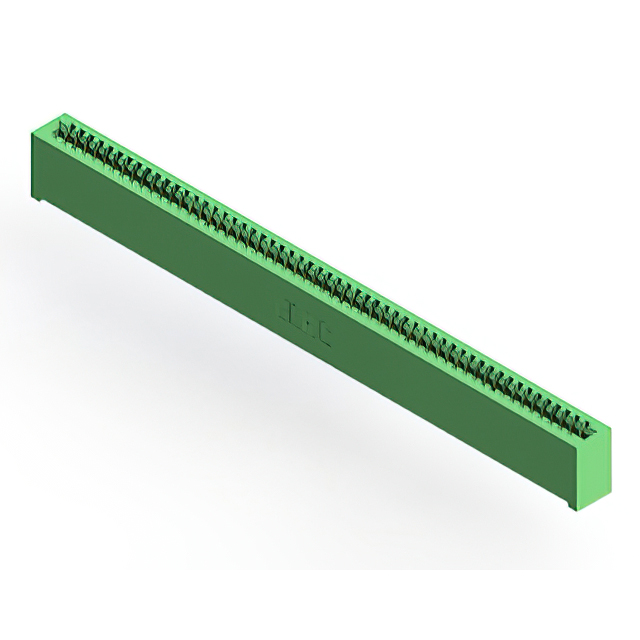

EDAC Inc. 842-055-521-101	Green	Copper Alloy	55	125 °C	-40 C	Solder	Through Hole				Gold	1	0.1 "	2.54 mm	55	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	Cantilever	1

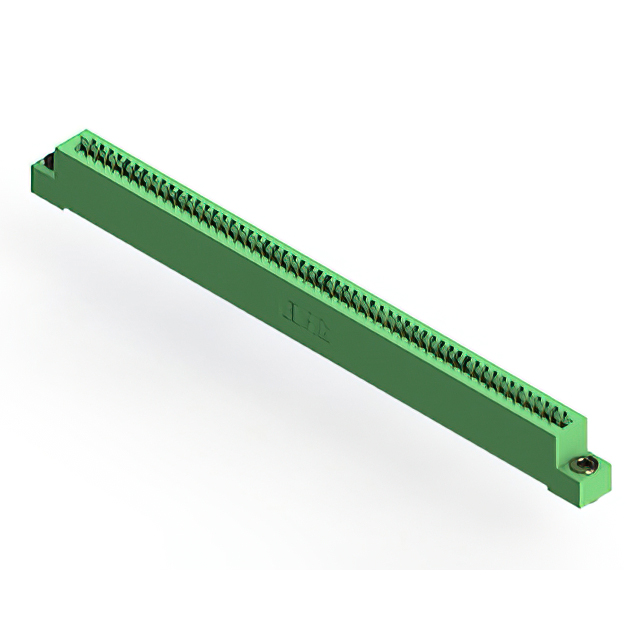

EDAC Inc. 842-055-524-103	Green	Copper Alloy	55	125 °C	-40 C	Solder	Through Hole	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Gold	1	0.1 "	2.54 mm	55	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	Cantilever	1

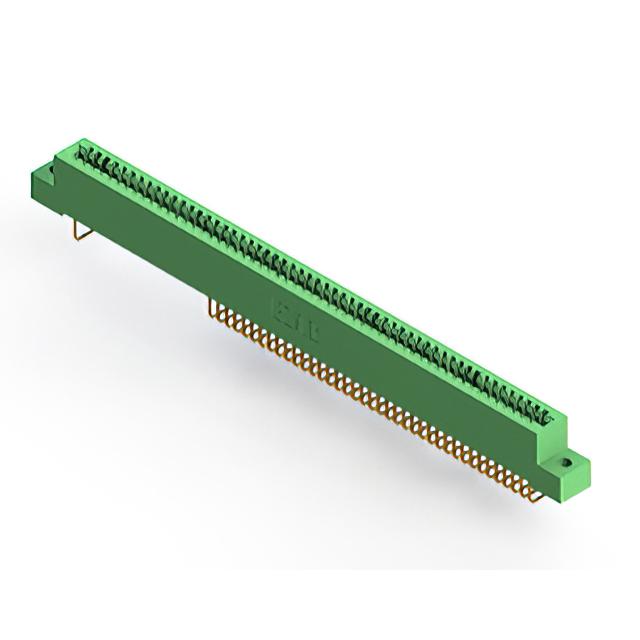

EDAC Inc. 842-055-558-102	Green	Copper Alloy	55	125 °C	-40 C	Solder	Right Angle Through Hole	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Gold	1	0.1 "	2.54 mm	55	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	Cantilever	1
EDAC Inc. 842-055-541-112	Green	Copper Alloy	55	125 °C	-40 C	Wire Wrap	Through Hole	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Gold	1	0.1 "	2.54 mm	55	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	Cantilever	1
EDAC Inc. 842-055-542-107	Green	Copper Alloy	55	125 °C	-40 C	Wire Wrap	Through Hole	Flush Mount M3 Threaded Insert Top Opening			Gold	1	0.1 "	2.54 mm	55	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	Cantilever	1
EDAC Inc. 842-055-542-104	Green	Copper Alloy	55	125 °C	-40 C	Wire Wrap	Through Hole	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Gold	1	0.1 "	2.54 mm	55	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	Cantilever	1
EDAC Inc. 842-055-542-102	Green	Copper Alloy	55	125 °C	-40 C	Wire Wrap	Through Hole	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Gold	1	0.1 "	2.54 mm	55	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	Cantilever	1
EDAC Inc. 842-055-523-103	Green	Copper Alloy	55	125 °C	-40 C	Solder	Through Hole	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Gold	1	0.1 "	2.54 mm	55	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	Cantilever	1
EDAC Inc. 842-055-541-104	Green	Copper Alloy	55	125 °C	-40 C	Wire Wrap	Through Hole	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Gold	1	0.1 "	2.54 mm	55	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	Cantilever	1
