OA938AP Series

Catalog

AC AXIAL FAN, 55 CFM, 15 W, 3150 RPM, 115 VAC, 40 DB, 92 MM X 38 MM, SQUARE, 2 LEAD WIRES

Part	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Material - Frame	Size / Dimension [y]	Size / Dimension [x]	Ingress Protection	Approval Agency	Weight	Weight	Noise	Voltage - Rated	Width [y]	Termination	RPM	Air Flow	Air Flow	Fan Type	Power (Watts)	Bearing Type	Static Pressure	Static Pressure	Voltage - Rated [Max]	Voltage - Rated [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination	Weight [custom]	Weight [custom]	Air Flow
ORION FANS OA938AP-11-1WB1855	50000 Hrs	120 VAC	100 VAC	Metal	Aluminum	92 mm	92 mm	IP55 - Dust Protected Water Resistant	cURus TUV	499 g	1.1 lbs	40 dB(A)	115 VAC	38 mm	2 Wire Leads	3150 RPM	1.54 mł/min	55 CFM	Tubeaxial	15 W	Ball	54.8 Pa	0.22 in H2O

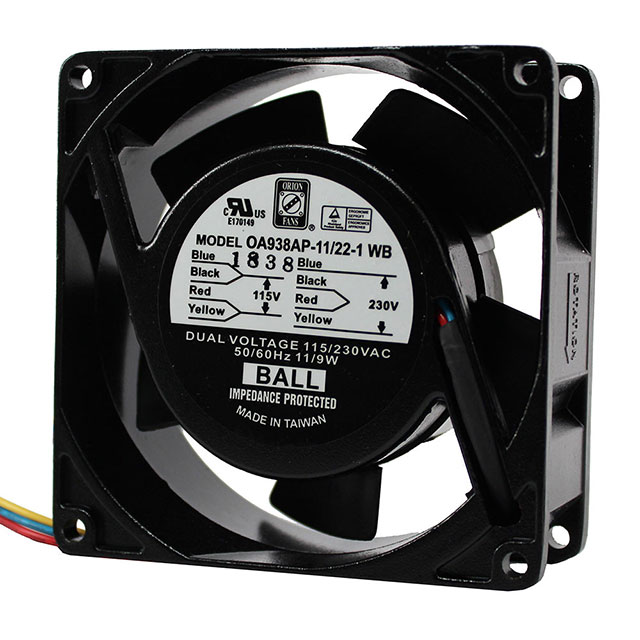

ORION FANS OA938AP-11/22-1WB	40 °C 60000 Hrs	240 VAC	100 VAC	Polybutylene Terephthalate (PBT)	Aluminum	92 mm	92 mm		cURus TUV			32 dB		38.5 mm	4 Wire Leads	3100 RPM	1.4 m³/min	50 CFM	Tubeaxial	9 W	Ball	54.8 Pa	0.22 in H2O	230 VAC	115 VAC	80 °C	-20 ░C	Dual Voltage
ORION FANS OA938AP-22-1WB1855	50000 Hrs			Metal	Aluminum	92 mm	92 mm	IP55 - Dust Protected Water Resistant	cURus TUV	499 g	1.1 lbs	40 dB(A)	230 VAC	38 mm	2 Wire Leads	3150 RPM	1.54 mł/min	55 CFM	Tubeaxial	15 W	Ball	54.8 Pa	0.22 in H2O
ORION FANS OA938AP-11-2TB	40 °C 60000 Hrs	130 VAC	80 VAC	Polybutylene Terephthalate (PBT)	Aluminum	92 mm	92 mm		cURus TUV			23 dB(A)	115 VAC	38.5 mm		2400 RPM	1.09 m³/min	39 CFM	Tubeaxial	5 W	Ball	42.3 Pa	0.17 in H2O			80 °C	-20 ░C		2	449.96 g	0.992 lb
ORION FANS OA938AP-11-1WB	40 °C 60000 Hrs	130 VAC	80 VAC	Polybutylene Terephthalate (PBT)	Aluminum	92 mm	92 mm		cURus TUV			32 dB	115 VAC	38.5 mm	2 Wire Leads	3100 RPM	1.4 m³/min	50 CFM	Tubeaxial	9 W	Ball	54.8 Pa	0.22 in H2O			80 °C	-20 ░C			449.96 g	0.992 lb
ORION FANS OA938AP-22-1WB	40 °C 60000 Hrs	260 VAC	160 VAC	Polybutylene Terephthalate (PBT)	Aluminum	92 mm	92 mm		cURus TUV			32 dB	230 VAC	38.5 mm	2 Wire Leads	3100 RPM	1.4 m³/min	50 CFM	Tubeaxial	9 W	Ball	54.8 Pa	0.22 in H2O			80 °C	-20 ░C			449.96 g	0.992 lb	50 CFM
ORION FANS OA938AP-22-1TB1855	50000 Hrs			Metal	Aluminum	92 mm	92 mm	IP55 - Dust Protected Water Resistant	cURus TUV	499 g	1.1 lbs	40 dB(A)	230 VAC	38 mm		3150 RPM	1.54 mł/min	55 CFM	Tubeaxial	15 W	Ball	54.8 Pa	0.22 in H2O						2
ORION FANS OA938AP-11-1TB	40 °C 60000 Hrs	130 VAC	80 VAC	Polybutylene Terephthalate (PBT)	Aluminum	92 mm	92 mm		cURus TUV			32 dB	115 VAC	38.5 mm		3100 RPM	1.4 m³/min	50 CFM	Tubeaxial	9 W	Ball	54.8 Pa	0.22 in H2O			80 °C	-20 ░C		2	449.96 g	0.992 lb
ORION FANS OA938AP-22-1TB	40 °C 60000 Hrs	260 VAC	160 VAC	Polybutylene Terephthalate (PBT)	Aluminum	92 mm	92 mm		cURus TUV			32 dB	230 VAC	38.5 mm		3100 RPM	1.4 m³/min	50 CFM	Tubeaxial	9 W	Ball	54.8 Pa	0.22 in H2O			80 °C	-20 ░C		2	449.96 g	0.992 lb
ORION FANS OA938AP-11-1TB1855	50000 Hrs	120 VAC	100 VAC	Metal	Aluminum	92 mm	92 mm	IP55 - Dust Protected Water Resistant	cURus TUV	499 g	1.1 lbs	40 dB(A)	115 VAC	38 mm		3150 RPM	1.54 mł/min	55 CFM	Tubeaxial	15 W	Ball	54.8 Pa	0.22 in H2O						2
