089400 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 7POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Insulation Color	Connector Type	Style	Insulation Material	Contact Material	Shrouding	Number of Rows	Contact Type	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Mounting Type	Termination	Fastening Type	Number of Positions
Molex 0894000720	1.27 µm	50 µin	6.05 mm	0.238 in	Natural	Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	Brass	Shrouded - 4 Wall	1	Male Pin	All	7	1.27 µm	50 µin	Tin	UL94 V-0	0.079 in	2 mm	0.134 in	3.4 mm	Square	Through Hole	Kinked Pin Solder	Detent Lock
Molex 0894000520	1.27 µm	50 µin	6.05 mm	0.238 in	Natural	Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	Brass	Shrouded - 4 Wall	1	Male Pin	All		1.27 µm	50 µin	Tin	UL94 V-0	0.079 in	2 mm	0.134 in	3.4 mm	Square	Through Hole	Kinked Pin Solder	Detent Lock
Molex 0894001620	1.27 µm	50 µin	6.05 mm	0.238 in	Natural	Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	Brass	Shrouded - 4 Wall	1	Male Pin	All		1.27 µm	50 µin	Tin	UL94 V-0	0.079 in	2 mm	0.134 in	3.4 mm	Square	Through Hole	Kinked Pin Solder	Detent Lock	16
Molex 0894000511	1.27 µm	50 µin	6.05 mm	0.238 in	Black	Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	Brass	Shrouded - 4 Wall	1	Male Pin	All		1.27 µm	50 µin	Tin	UL94 V-0	0.079 in	2 mm	0.134 in	3.4 mm	Square	Through Hole	Kinked Pin Solder	Detent Lock
Molex 0894000810	1.27 µm	50 µin	6.05 mm	0.238 in	Natural	Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	Brass	Shrouded - 4 Wall	1	Male Pin	All	8	1.27 µm	50 µin	Tin	UL94 V-0	0.079 in	2 mm	0.134 in	3.4 mm	Square	Through Hole	Kinked Pin Solder	Detent Lock
Molex 0894000610
Molex 0894000321	1.27 µm	50 µin	6.05 mm	0.238 in	Black	Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	Brass	Shrouded - 4 Wall	1	Male Pin	All		1.27 µm	50 µin	Tin	UL94 V-0	0.079 in	2 mm	0.134 in	3.4 mm	Square	Through Hole	Kinked Pin Solder	Detent Lock

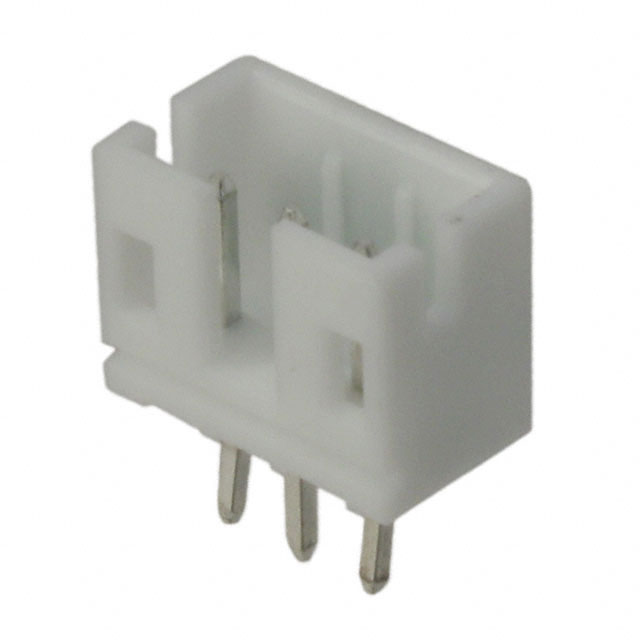

Molex 0894000320	1.27 µm	50 µin	6.05 mm	0.238 in	Natural	Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	Brass	Shrouded - 4 Wall	1	Male Pin	All		1.27 µm	50 µin	Tin	UL94 V-0	0.079 in	2 mm	0.134 in	3.4 mm	Square	Through Hole	Kinked Pin Solder	Detent Lock

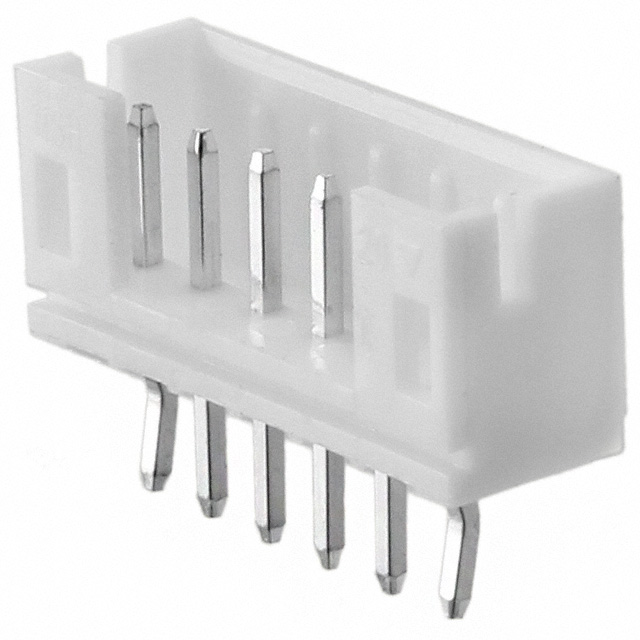

Molex 0894000620	1.27 µm	50 µin	6.05 mm	0.238 in	Natural	Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	Brass	Shrouded - 4 Wall	1	Male Pin	All	6	1.27 µm	50 µin	Tin	UL94 V-0	0.079 in	2 mm	0.134 in	3.4 mm	Square	Through Hole	Kinked Pin Solder	Detent Lock
Molex 0894000510	1.27 µm	50 µin	6.05 mm	0.238 in	Natural	Header	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	Brass	Shrouded - 4 Wall	1	Male Pin	All		1.27 µm	50 µin	Tin	UL94 V-0	0.079 in	2 mm	0.134 in	3.4 mm	Square	Through Hole	Kinked Pin Solder	Detent Lock
