3282-4P Series

Catalog

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Connector Type	Features	Primary Material	Mounting Type	Number of Positions	Color	Contact Material	Shielding	Current Rating (Amps)	Fastening Type	Contact Finish - Mating	Orientation	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Backshell Material, Plating	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating
SWITCHCRAFT/CONXALL 3282-4PG-524	Plug Male Pins	Backshell Cable Clamp	Plastic	Free Hanging (In-Line)	4	Black	Brass	Unshielded	5.6 A	Bayonet Lock	Gold	Keyed	6.86 mm	0.24 "	0.27 "	6.1 mm	Nylon Polyamide (PA)	Weathertight	115 °C	-40 C	600 V
SWITCHCRAFT/CONXALL 3282-4PG-321	Plug Male Pins	Backshell	Plastic	Free Hanging (In-Line)	4	Black	Brass	Unshielded	5.6 A	Bayonet Lock	Gold	Keyed	5.84 mm	0.21 in	0.23 in	5.33 mm	Nylon Polyamide (PA)	Weathertight	115 °C	-40 C	600 V
SWITCHCRAFT/CONXALL 3282-4PG-328	Plug Male Pins	Backshell	Plastic	Free Hanging (In-Line)	4	Black	Brass	Unshielded	5.6 A	Bayonet Lock	Gold	Keyed	7.37 mm	0.28 in	0.29 in	7.11 mm	Nylon Polyamide (PA)	Weathertight	115 °C	-40 C	600 V
SWITCHCRAFT/CONXALL 3282-4PG-315	Plug Male Pins	Backshell	Plastic	Free Hanging (In-Line)	4	Black	Brass	Unshielded	5.6 A	Bayonet Lock	Gold	Keyed	4.32 mm	0.15 "	0.17 in	3.81 mm	Nylon Polyamide (PA)	Weathertight	115 °C	-40 C	600 V
SWITCHCRAFT/CONXALL 3282-4PG-515	Plug Male Pins	Backshell Cable Clamp	Plastic	Free Hanging (In-Line)	4	Black	Brass	Unshielded	5.6 A	Bayonet Lock	Gold	Keyed	4.32 mm	0.15 "	0.17 in	3.81 mm	Nylon Polyamide (PA)	Weathertight	115 °C	-40 C	600 V
SWITCHCRAFT/CONXALL 3282-4PG-530	Plug Male Pins	Backshell Cable Clamp	Plastic	Free Hanging (In-Line)	4	Black	Brass	Unshielded	5.6 A	Bayonet Lock	Gold	Keyed	8.13 mm	0.3 in	0.32 in	7.62 mm	Nylon Polyamide (PA)	Weathertight	115 °C	-40 C	600 V
SWITCHCRAFT/CONXALL 3282-4PG-528	Plug Male Pins	Backshell Cable Clamp	Plastic	Free Hanging (In-Line)	4	Black	Brass	Unshielded	5.6 A	Bayonet Lock	Gold	Keyed	7.37 mm	0.28 in	0.29 in	7.11 mm	Nylon Polyamide (PA)	Weathertight	115 °C	-40 C	600 V

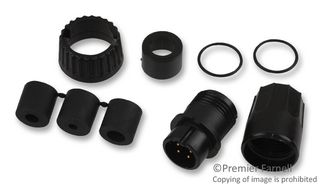

SWITCHCRAFT/CONXALL 3282-4PG-3DC	Plug Male Pins	Backshell	Plastic	Free Hanging (In-Line)	4	Black	Brass	Unshielded	5.6 A	Bayonet Lock	Gold	Keyed					Nylon Polyamide (PA)	Weathertight	115 °C	-40 C	600 V
SWITCHCRAFT/CONXALL 3282-4PG-324	Plug Male Pins	Backshell	Plastic	Free Hanging (In-Line)	4	Black	Brass	Unshielded	5.6 A	Bayonet Lock	Gold	Keyed	6.86 mm	0.24 "	0.27 "	6.1 mm	Nylon Polyamide (PA)	Weathertight	115 °C	-40 C	600 V
SWITCHCRAFT/CONXALL 3282-4PG-518	Plug Male Pins	Backshell Cable Clamp	Plastic	Free Hanging (In-Line)	4	Black	Brass	Unshielded	5.6 A	Bayonet Lock	Gold	Keyed	5.08 mm	0.18 "	0.2 "	4.57 mm	Nylon Polyamide (PA)	Weathertight	115 °C	-40 C	600 V
