A123K12 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Voltage Rating - DC	Termination Style	Actuator Length [x]	Mounting Type	Features	Circuit	Actuator Type	Illumination	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread
Electroswitch A123K12KZG	60000 Cycles	Brass Chrome Plated	28 V	Solder Lug	15.47 mm	Panel Mount	Epoxy Sealed Terminals	SPDT	Locking Lever	Non-Illuminated	6 A	125 V	On-On	-30 ░C	90 °C	1/4-40
Electroswitch A123K12KZG-M8	60000 Cycles	Brass Chrome Plated	28 V	Solder Lug	15.47 mm	Panel Mount	Epoxy Sealed Terminals	SPDT	Locking Lever	Non-Illuminated	6 A	125 V	On-On	-30 ░C	90 °C	1/4-40
Electroswitch A123K12KZB	60000 Cycles	Brass Chrome Plated	28 V	Solder Lug	15.47 mm	Panel Mount	Epoxy Sealed Terminals	SPDT	Locking Lever	Non-Illuminated	0.5 VA	28 V	On-On	-30 ░C	90 °C	1/4-40
Electroswitch A123K12KAQ	60000 Cycles	Brass Chrome Plated	28 V	PC Pin	15.47 mm	Panel Mount Right Angle	Epoxy Sealed Terminals	SPDT	Locking Lever	Non-Illuminated	6 A	125 V	On-On	-30 ░C	90 °C	1/4-40
Electroswitch A123K12KCQ	60000 Cycles	Brass Chrome Plated	28 V	PC Pin	15.47 mm	Panel Mount	Epoxy Sealed Terminals	SPDT	Locking Lever	Non-Illuminated	6 A	125 V	On-On	-30 ░C	90 °C	1/4-40
Electroswitch A123K12KCG-M8	60000 Cycles	Brass Chrome Plated	28 V	PC Pin	15.47 mm	Panel Mount	Epoxy Sealed Terminals	SPDT	Locking Lever	Non-Illuminated	6 A	125 V	On-On	-30 ░C	90 °C	1/4-40
Electroswitch A123K12KAV2G	60000 Cycles	Brass Chrome Plated	28 V	PC Pin	15.47 mm	Panel Mount Right Angle Vertical	Epoxy Sealed Terminals	SPDT	Locking Lever	Non-Illuminated	6 A	125 V	On-On	-30 ░C	90 °C	1/4-40

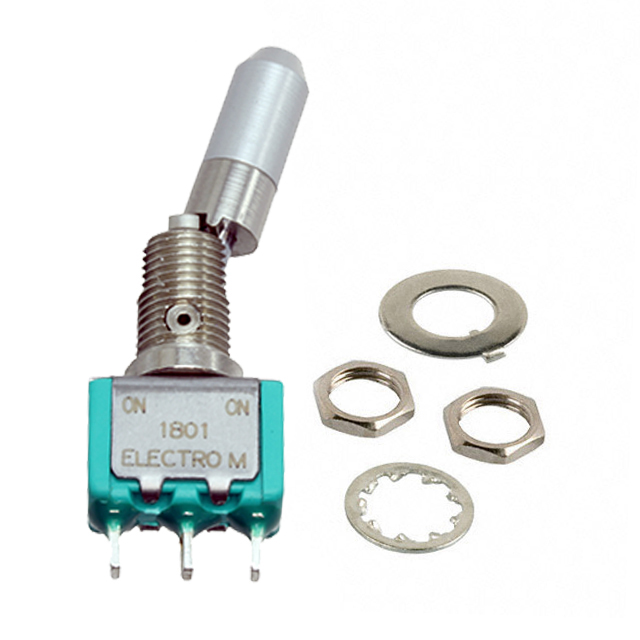

Electroswitch A123K12KZQ	60000 Cycles	Brass Chrome Plated	28 V	Solder Lug	15.47 mm	Panel Mount	Epoxy Sealed Terminals	SPDT	Locking Lever	Non-Illuminated	6 A	125 V	On-On	-30 ░C	90 °C	1/4-40
Electroswitch A123K12KAB	60000 Cycles	Brass Chrome Plated	28 V	PC Pin	15.47 mm	Panel Mount Right Angle	Epoxy Sealed Terminals	SPDT	Locking Lever	Non-Illuminated	0.5 VA	28 V	On-On	-30 ░C	90 °C	1/4-40
