302-R60 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

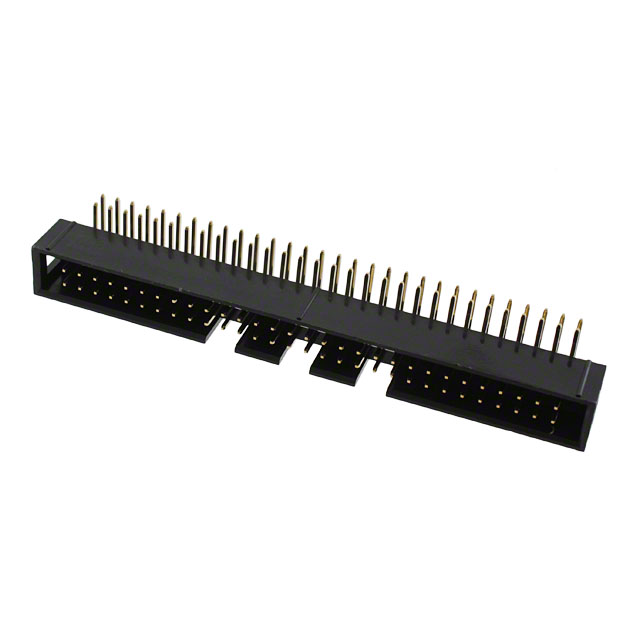

CONN HEADER R/A 60POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Mounting Type | Contact Finish - Post | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Number of Positions | Current Rating (Amps) | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Number of Rows [custom] | Voltage Rating | Style | Contact Finish Thickness - Mating | Contact Shape | Features | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Insulation Color | Contact Material | Insulation Material | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height | Insulation Height | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Male Pin | Right Angle Through Hole | Gold | Gold | 0.1 " | 2.54 mm | All | 60 | 3 A | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Solder | 2 | 250 V | Board to Cable/Wire | Flash | Square | Keying Slot | Push-Pull | -40 C | 105 ░C | UL94 V-0 | Black | Brass | Polyester Glass Filled | 0.122 in | 3.1 mm | 0.358 " | 9.1 mm | Header |
