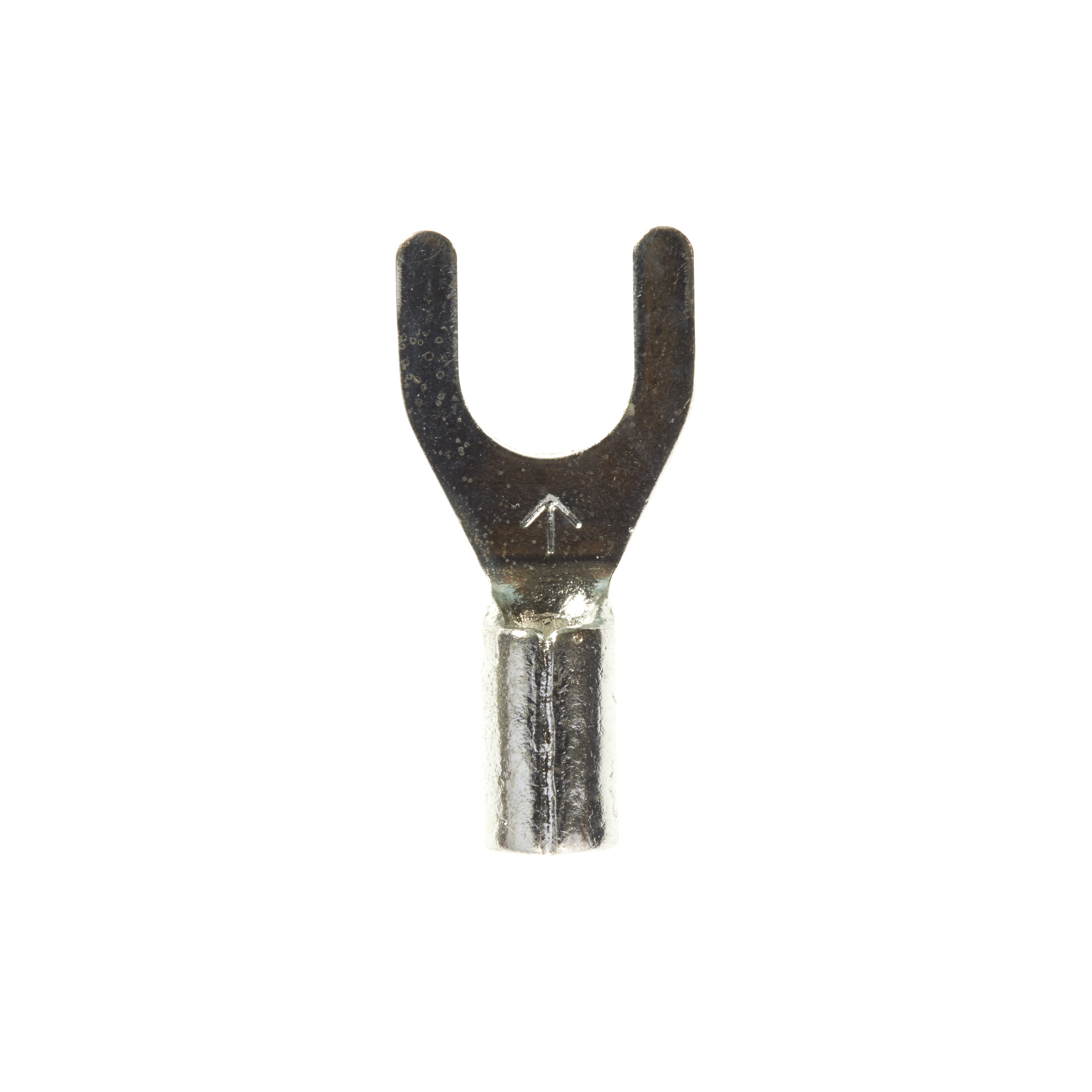

123-10 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K
16-12 AWG H/D NYLON INSULATED W/INSULATION GRIP RING TONGUE TE
| Part | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Material - Insulation | Length - Overall [x] | Length - Overall [x] | Mounting Type | Insulation | Contact Material | Terminal Type | Thickness | Thickness | Stud/Tab Size | Features | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Termination | Width - Outer Edges [x] | Width - Outer Edges [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 6.35 mm | 0.25 in | Nylon Polyamide (PA) | 26.16 mm | 1.03 in | Free Hanging (In-Line) | Insulated | Copper ETP | Circular | 50 mils | 0.05 in | 10 Stud | Butted Seam Heavy Duty | Tin | 16 AWG | 12 AWG | Crimp | 9.65 mm | 0.38 in |
