BU080Z Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

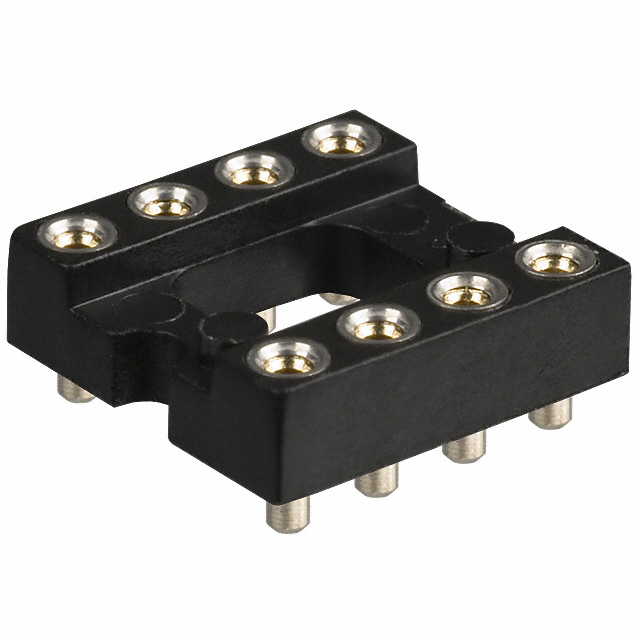

CONN IC DIP SOCKET 8POS GOLD
| Part | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Mounting Type | Contact Finish - Post | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Type | Type | Type | Housing Material | Features | Termination | Contact Material - Post [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 0.059 " | 1.5 mm | UL94 V-0 | 7 mOhm | 1 A | Beryllium Copper | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Surface Mount | Copper | Gold | 78.7 µin | 2 µm | 8 | 2 | 4 | -55 C | 125 °C | Flash | 7.62 mm | 0.3 in | DIP | Polybutylene Terephthalate (PBT) Glass Filled | Open Frame | Solder | Brass |
