T9GS2 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GEN PURPOSE SPST 20A 9V

Part	Coil Resistance	Coil Voltage	Must Release Voltage	Contact Form	Coil Current	Load - Max Switching [Max]	Approval Agency	Coil Insulation	Seal Rating	Contact Material	Mounting Type	Release Time	Switching Voltage [Max]	Operate Time	Relay Type	Must Operate Voltage	Coil Type	Termination Style	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors T9GS2L14-9	90 Ohms	9 VDC	0.9 VDC	SPST-NC (1 Form B)	0.1 A	9600 VA	CQC cURus VDE	Class F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Through Hole	22 ms	480 VAC	15 ms	General Purpose	6.75 VDC	Non Latching	PC Pin	20 A	-40 C	105 ░C
TE Connectivity AMP Connectors T9GS2L24-110	13.4 kOhms	110 VDC	11 VDC	SPST-NC (1 Form B)	8.2 mA	9600 VA	CQC cURus VDE	Class F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Through Hole	22 ms	480 VAC	15 ms	General Purpose	82.5 VDC	Non Latching	PC Pin Quick Connect - 0.250" (6.3mm)	20 A	-40 C	105 ░C

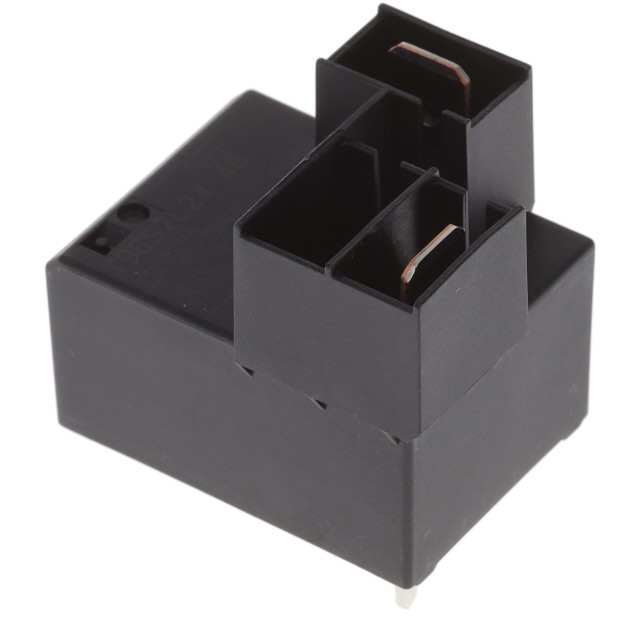

TE Connectivity AMP Connectors T9GS2L24-48	2500 Ohms	48 VDC	4.8 VDC	SPST-NC (1 Form B)	18.8 mA	9600 VA	CQC cURus VDE	Class F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Through Hole	22 ms	480 VAC	15 ms	General Purpose	36 VDC	Non Latching	PC Pin Quick Connect - 0.250" (6.3mm)	20 A	-40 C	105 ░C
TE Connectivity AMP Connectors T9GS2L24-18	360 Ohms	18 VDC	1.8 VDC	SPST-NC (1 Form B)	50 mA	9600 VA	CQC cURus VDE	Class F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Through Hole	22 ms	480 VAC	15 ms	General Purpose	13.5 VDC	Non Latching	PC Pin Quick Connect - 0.250" (6.3mm)	20 A	-40 C	105 ░C
TE Connectivity AMP Connectors T9GS2L14-18	360 Ohms	18 VDC	1.8 VDC	SPST-NC (1 Form B)	50 mA	9600 VA	CQC cURus VDE	Class F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Through Hole	22 ms	480 VAC	15 ms	General Purpose	13.5 VDC	Non Latching	PC Pin	20 A	-40 C	105 ░C
TE Connectivity AMP Connectors T9GS2L14-22	538 Ohms	22 VDC	2.2 VDC	SPST-NC (1 Form B)	41 mA	9600 VA	CQC cURus VDE	Class F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Through Hole	22 ms	480 VAC	15 ms	General Purpose	16.5 VDC	Non Latching	PC Pin	20 A	-40 C	105 ░C
TE Connectivity AMP Connectors T9GS2L24-5	28 Ohms	5 VDC	0.5 VDC	SPST-NC (1 Form B)	180 mA	9600 VA	CQC cURus VDE	Class F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Through Hole	22 ms	480 VAC	15 ms	General Purpose	3.75 VDC	Non Latching	PC Pin Quick Connect - 0.250" (6.3mm)	20 A	-40 C	105 ░C

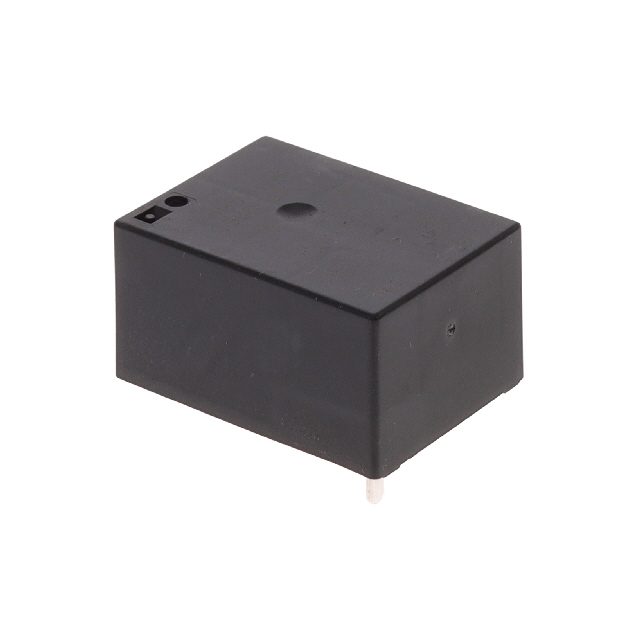

TE Connectivity AMP Connectors T9GS2L14-15	249 Ohms	15 VDC	1.5 VDC	SPST-NC (1 Form B)	0.06 A	9600 VA	CQC cURus VDE	Class F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Through Hole	22 ms	480 VAC	15 ms	General Purpose	11.25 VDC	Non Latching	PC Pin	20 A	-40 C	105 ░C
