TZ03Z070 Series

Catalog

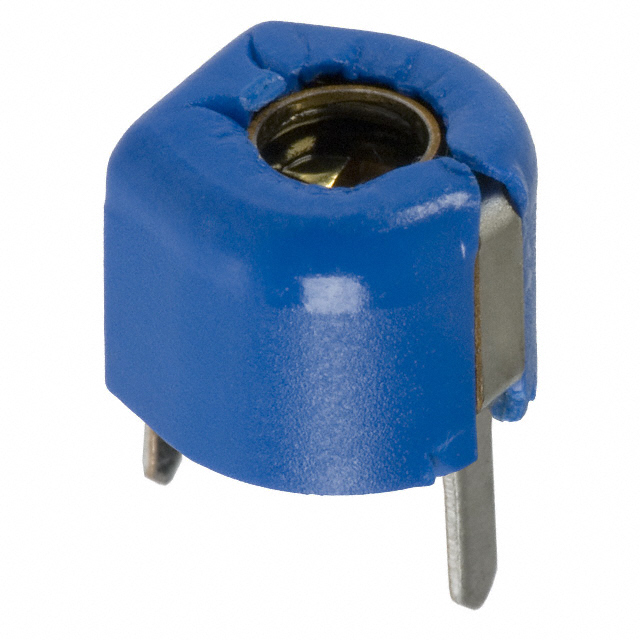

CAP TRIMMER 2-7PF 100V TH

Part	Capacitance Range [Min]	Capacitance Range [Max]	Voltage - Rated	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Q @ Freq	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Adjustment Type	Size / Dimension [diameter]	Size / Dimension [diameter]
Murata Power Solutions Inc. TZ03Z070E169B00	2 pF	7 pF	100 V	Ceramic	-25 °C	85 °C	Through Hole	1 MHz 500	General Purpose	5.3 mm	0.209 in	Bottom	6 mm	0.236 in
