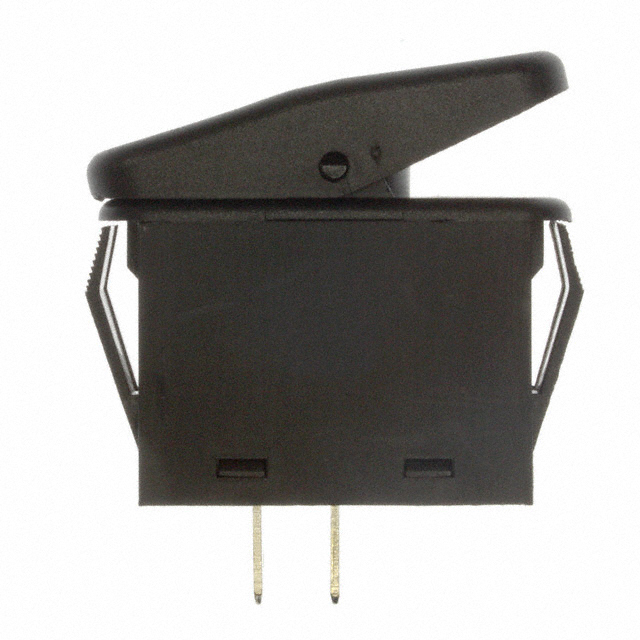

KTG2ANB1 Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH ROCKER SPST 20A 125V
| Part | Electrical Life | Mechanical Life | Termination Style | Mounting Type | Actuator Type | Current Rating (Amps) | Switch Function | Voltage Rating - DC | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Circuit | Voltage Rating - AC | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 6000 Cycles | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | Convex (Reverse V) | 20 A 21 A | On-Off | 14 V | O - | 85 °C | -20 ░C | Black | 36.8 mm | 15.2 mm | SPST | 125 V | IP56 - Dust Protected Water Resistant |
