EPS090166 Series

Manufacturer: CUI Inc.

Catalog

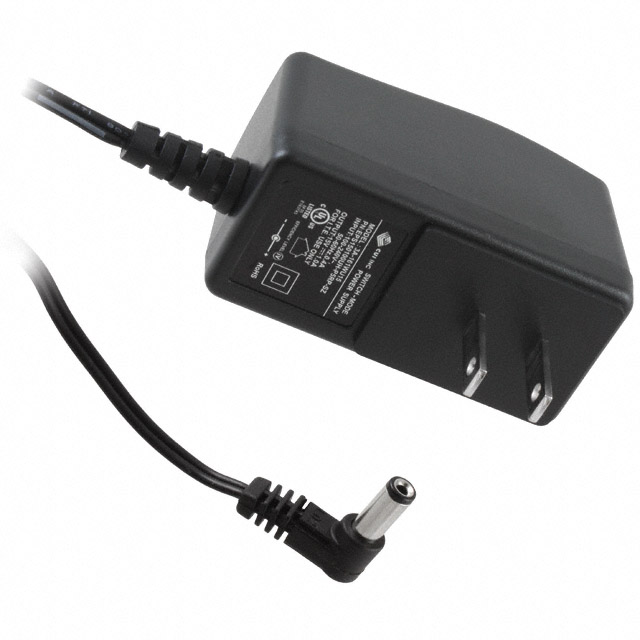

AC/DC WALL MOUNT ADAPTER 9V 15W

Part	Input Type	Polarization	Efficiency	Voltage - Output	Cord Length	Cord Length	No Load Power Consumption	Region Utilized	Applications	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Form	Current - Output (Max) [Max]	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]
CUI Inc. EPS090166UH-P5P-SZ	Fixed Blade	Positive Center	Level IV	9 V	1 m	39.4 in	300 mW	North America	ITE (Commercial)	180.08 g	0.397 lb	40 °C	0 °C	264 VAC	90 VAC	NEMA 1-15P	2.83 in	72 mm	47.6 mm	35 mm	1.38 in	1.87 in	15 W	Wall Mount	1.66 A	2.1 mm	5.5 mm	Barrel Plug	12 mm
