PS0S0D Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Voltage Rating - Appliance Inlet	Connector Type	Termination	Termination	Termination	Filter Type	Panel Cutout Dimensions	Fuse Holder, Drawer	Current Rating - Filter	Approval Agency	Current Rating - Appliance Inlet	Switch Features	Features	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Connector Style	Mounting Type

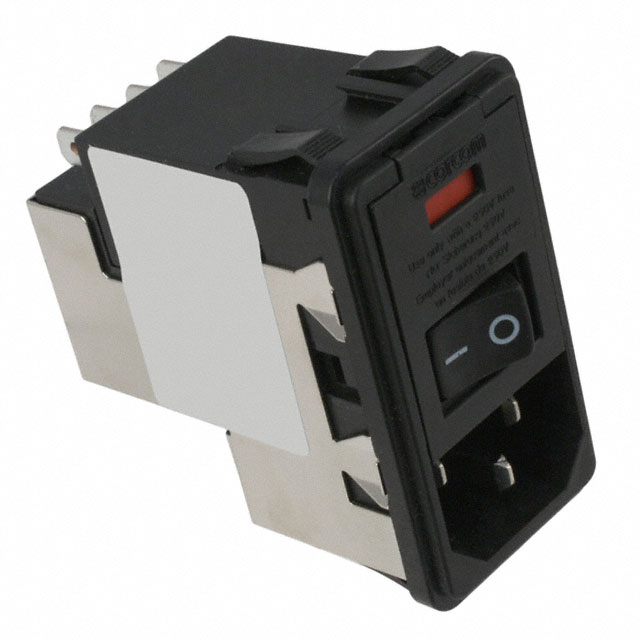

TE Connectivity Corcom Filters PS0S0DS6A	120 VAC	Receptacle Male Blades - Module	Quick Connect	0.187 "	4.7 mm	Filtered (EMI RFI) - Commercial	Variable Size	Twin Fused	6 A	CSA UL VDE	6 A	Switch On-Off	Shielded	0.79 mm	2.9 mm	0.031 "	0.114 in	IEC 320-C14	Panel Mount Snap-In

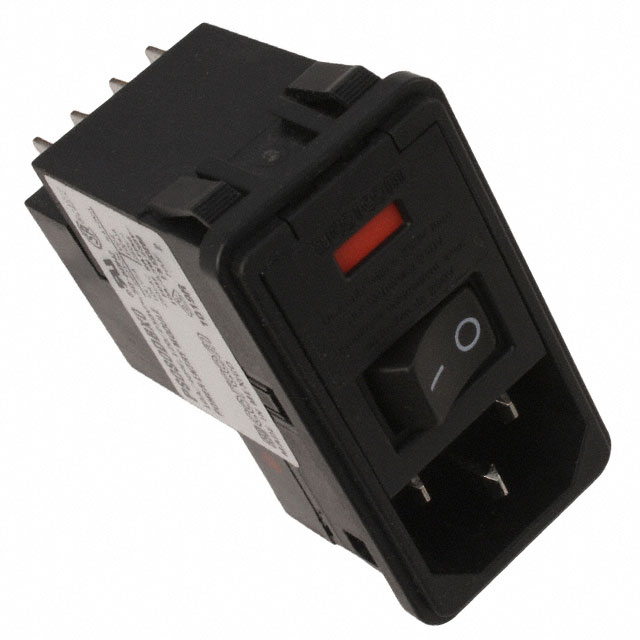

TE Connectivity Corcom Filters PS0S0DBX0	120 VAC	Receptacle Male Blades - Module	Quick Connect	0.187 "	4.7 mm	Filtered (EMI RFI) - Commercial	Variable Size	Twin Fused	10 A	CSA UL VDE	10 A	Switch On-Off	Interconnection Block	0.79 mm	2.9 mm	0.031 "	0.114 in	IEC 320-C14	Panel Mount Snap-In

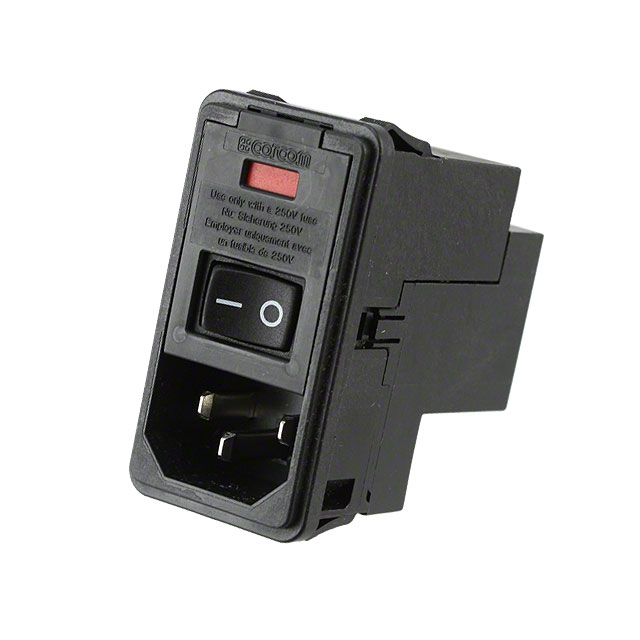

TE Connectivity Corcom Filters PS0S0DSX0	120 VAC	Receptacle Male Blades - Module	Quick Connect	0.187 "	4.7 mm	Filtered (EMI RFI) - Commercial	Variable Size	Twin Fused	10 A	CSA UL VDE	10 A	Switch On-Off		0.79 mm	2.9 mm	0.031 "	0.114 in	IEC 320-C14	Panel Mount Snap-In
