0997-6 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

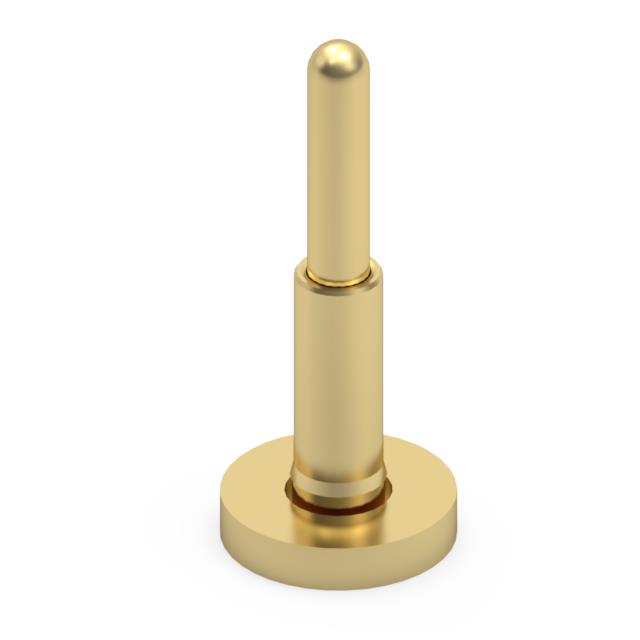

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Operating Force - Mid Compression | Minimum Working Height [Min] | Minimum Working Height [Min] | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Mating Cycles | Contact Finish | Maximum Working Height [Max] | Maximum Working Height [Max] | Mounting Type | Plunger Size [diameter] | Plunger Size [diameter] | Recommended Working Height | Recommended Working Height | Contact Type | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.159 in | 4.04 mm | 60 gf | 8 mm | 0.315 in | 20 µin | 0.51 µm | 5.2 A | Brass Alloy | 1000000 | Gold | 9.4 mm | 0.37 in | Surface Mount | 0.042 in | 1.07 mm | 8.7 mm | 0.343 in | Sleeve & Plunger (Pogo Pins) | 10 gf |
