EN3P9M Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

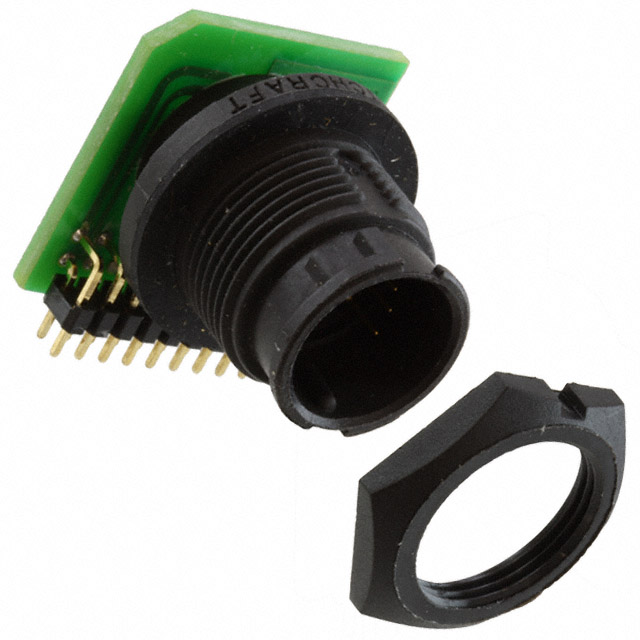

CIRCULAR CONNECTOR, EN3 SERIES, PCB MOUNT RECEPTACLE, 9 CONTACTS, PCB PIN, THERMOPLASTIC BODY
| Part | Ingress Protection | Contact Material | Color | Orientation | Insert Material | Voltage Rating | Applications | Mounting Type | Termination | Contact Finish - Mating | Current Rating (Amps) | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Mounting Feature | Shielding | Material Flammability Rating | Primary Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | IP66 IP68 | Copper Alloy | Black | Keyed | Elastomer | 250 VAC | General Purpose Instrumentation Marine Medical | Panel Mount Right Angle Through Hole | Circuit Board Solder | Gold | 2 A | Receptacle Male Pins | -40 C | 65 °C | 9 | Bulkhead - Front Side Nut | Unshielded | UL94 V-0 | Plastic | Bayonet Lock |
 SWITCHCRAFT/CONXALL | IP66 IP68 | Copper Alloy | Black | Keyed | Elastomer | 250 VAC | General Purpose Instrumentation Marine Medical | Panel Mount Right Angle Through Hole | Circuit Board Solder | Gold | 2 A | Receptacle Male Pins | -40 C | 65 °C | 9 | Bulkhead - Front Side Nut | Unshielded | UL94 V-0 | Plastic | Bayonet Lock |
