PM108FRAO Series
Manufacturer: Anderson Power Products, Inc.
Beta
⌘K

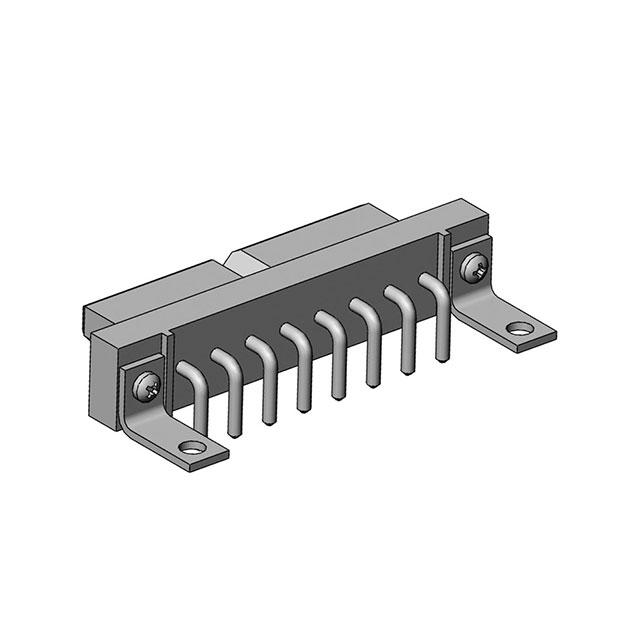

POWERMOD 1X8FEMALE RIGHT ANGLE P
| Part | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Contact Material | Contact Type | Insulation Height | Insulation Height | Voltage Rating | Contact Length - Post [x] | Contact Length - Post [x] | Connector Type | Mounting Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Termination | Number of Rows | Current Rating (Amps) | Contact Finish - Post | Features | Number of Positions | Style | Material Flammability Rating | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Anderson Power Products, Inc. | Circular | 200 µin | 5.08 µm | Polyphenylene Sulfide (PPS) | Beryllium Copper | Female Socket Power | 0.41 " | 10.41 mm | 600 V | 3.81 mm | 0.15 in | Receptacle | Right Angle Through Hole | 0.197 " | 5 mm | All | Solder | 1 | 30 A | Tin | Mounting Flange | 8 | Board to Board Cable | UL94 V-0 | Gold | 180 °C | -55 C | Black | 0.076 µm | 3 µin |
