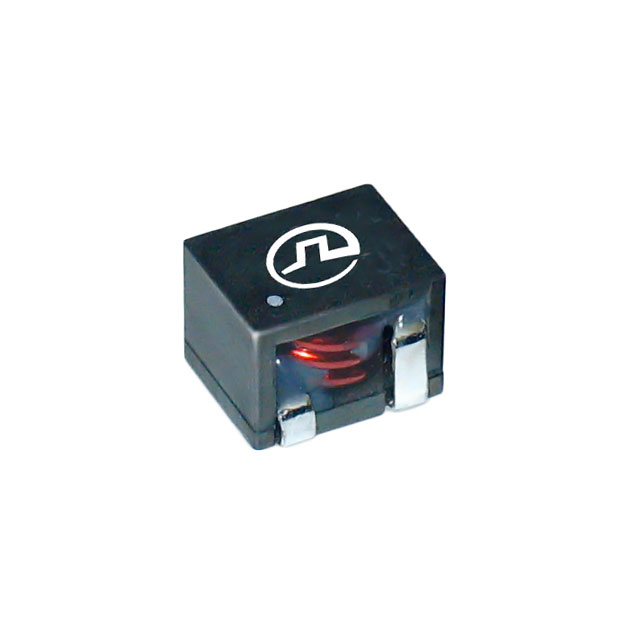

PG1083 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD IND, 8080 PWR, SMT NPB
| Part | Shielding | Current - Saturation (Isat) | Tolerance | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance Frequency - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Type | DC Resistance (DCR) | Inductance | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Unshielded | 52 A | 20 % | Surface Mount | 10.6 mm | 0.417 in | 100 kHz | 21.7 mm | 0.846 in | 0.854 in | 21.5 mm | Nonstandard | 130 °C | -40 C | Wirewound | 1.4 mOhm | 1.5 µH | 40 A |
