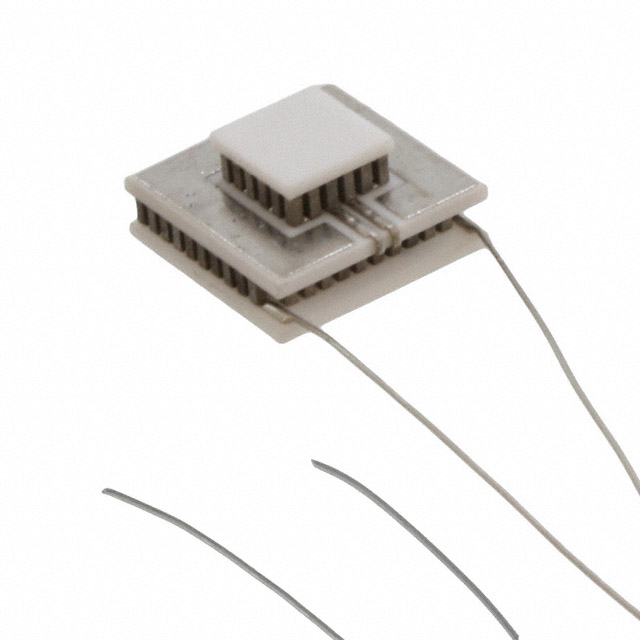

475011 Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K
PELTIR MS2,083,05,05,13,13,00,W8
| Part | Number of Stages | Height [z] | Operating Temperature | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | Delta Tmax @ Th | Current - Max [Max] | Voltage - Max [Max] | Features | Qmax @ Th |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 2 | 4.6 mm | 80 °C | 9.75 mm | 9.75 mm | Square | 25 °C 90 °C | 600 mA | 6.9 V | Lead Wires Non-Sealed | 1.1 W |
Laird Thermal Systems, Inc. | 2 | 4.44 mm | 80 °C | 9.75 mm | 9.75 mm | Square | 25 °C 90 °C | 600 mA | 6.9 V | Lead Wires Non-Sealed | 1.1 W |
